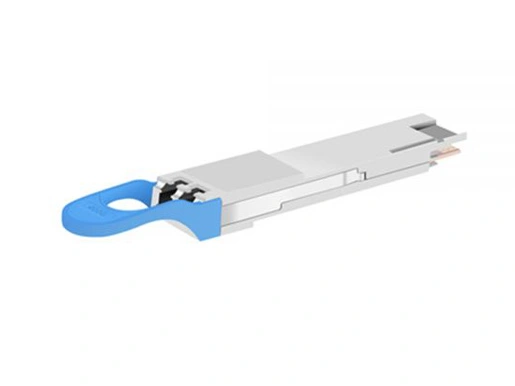

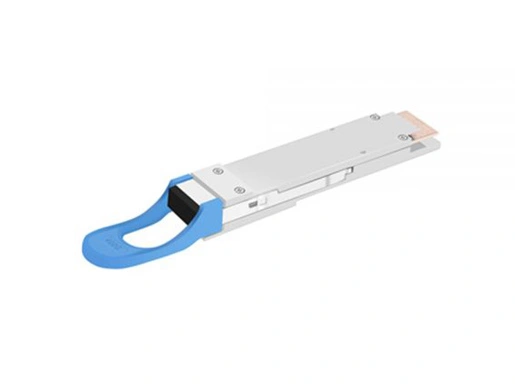

400Gb/s QSFP-DD FR4 2km Transceiver

LA-OT-400G-FR4
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 2km optical communication applications.
Overview
Specifications
Connectivity Solutions
Models
Resources

This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

● QSFP-DD MSA compliant
● 4 CWDM lanes MUX/DEMUX design
● 100G Lambda MSA 400G-FR4 Specification compliant
● Up to 2km transmission on single mode fiber (SMF) with FEC
● Operating case temperature: 0 to 70oC
● 8x53.125Gb/s electrical interface (400GAUI-8)
● Data Rate 106.25Gbps (PAM4) per channel.
● Maximum power consumption 12W
● Duplex LC connector
● RoHS compliant

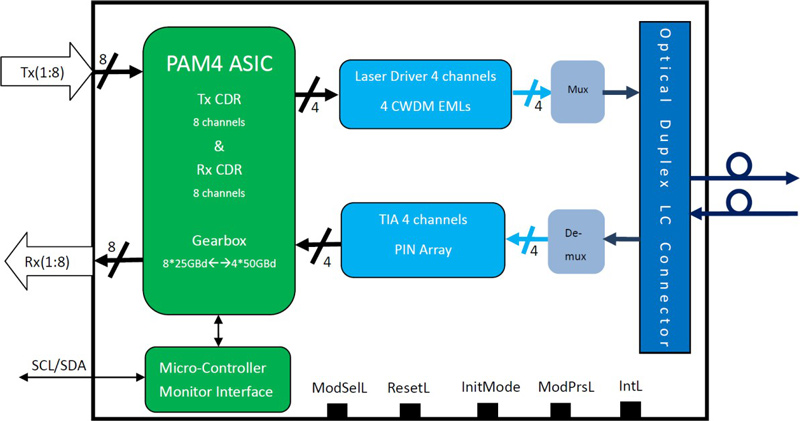

Transceiver Block Diagram

Transceiver Block Diagram of 400Gb/s QSFP-DD FR4 2km Transceiver


Figure 1. Transceiver Block Diagram


Pin Assignment and Deion

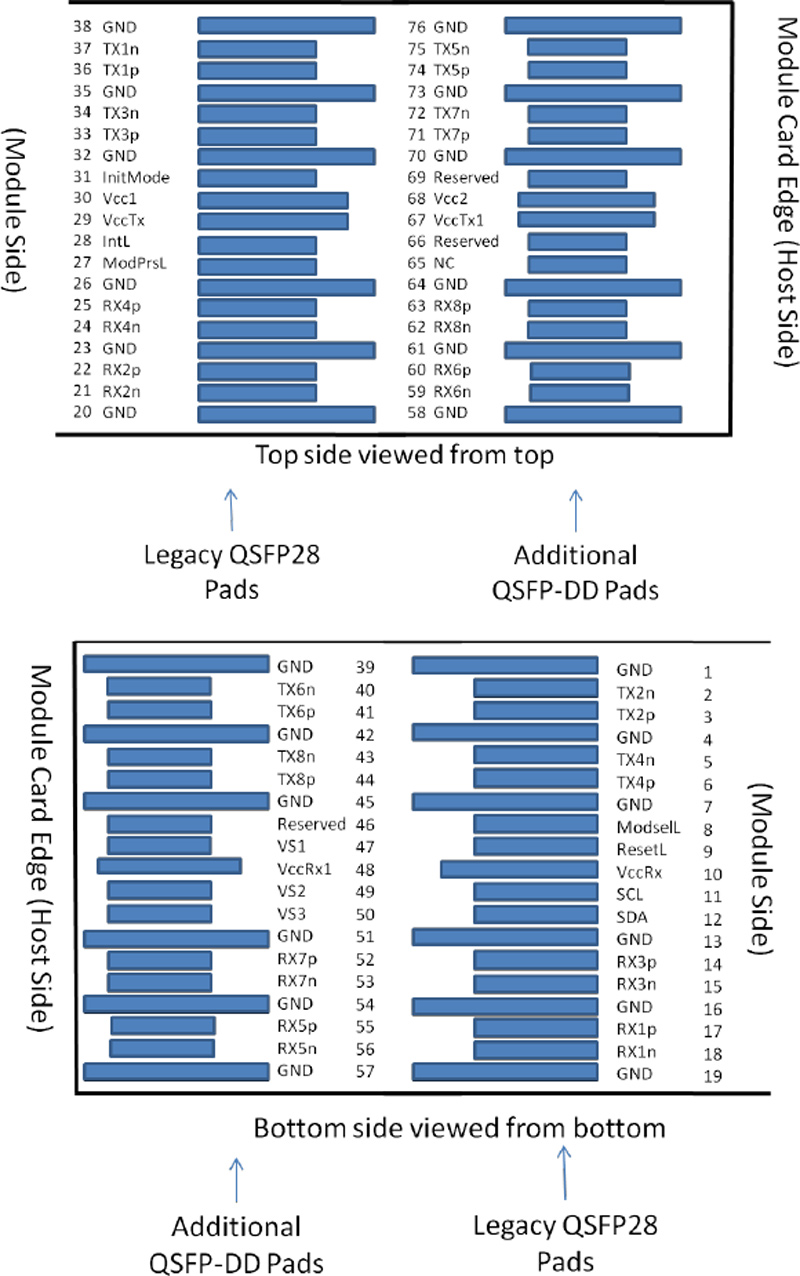

The electrical pinout of the QSFP-DD module is shown in Figure 2 below.

Pin Assignment and Deion of 400Gb/s QSFP-DD FR4 2km Transceiver

Figure 2. MSA Compliant Connector


Pin Definition

Pin

Logic

Symbol

Deion

Plug Sequence

Notes

1


GND

Ground

1B

1

2

CML-I

Tx2n

Transmitter Inverted Data Input

3B


3

CML-I

Tx2p

Transmitter Non-Inverted Data

Input

3B


4


GND

Ground

1B

1

5

CML-I

Tx4n

Transmitter Inverted Data Input

3B


6

CML-I

Tx4p

Transmitter Non-Inverted Data Input

3B


7


GND

Ground

1B

1

8

LVTTL-I

ModSelL

Module Select

3B


9

LVTTL-I

ResetL

Module Reset

3B


10


VccRx

+3.3V Power Supply Receiver

2B

2

11

LVCMOS-

I/O

SCL

2-wire serial interface clock

3B


12

LVCMOS-

I/O

SDA

2-wire serial interface data

3B


13


GND

Ground

1B

1

14

CML-O

Rx3p

Receiver Non-Inverted Data Output

3B


15

CML-O

Rx3n

Receiver Inverted Data Output

3B


16

GND

Ground

1B


1

17

CML-O

Rx1p

Receiver Non-Inverted Data Output

3B


18

CML-O

Rx1n

Receiver Inverted Data Output

3B


19


GND

Ground

1B

1

20


GND

Ground

1B

1

21

CML-O

Rx2n

Receiver Inverted Data Output

3B


22

CML-O

Rx2p

Receiver Non-Inverted Data Output

3B


23


GND

Ground

1B

1

24

CML-O

Rx4n

Receiver Inverted Data Output

3B


25

CML-O

Rx4p

Receiver Non-Inverted Data Output

3B


26


GND

Ground

1B

1

27

LVTTL-O

ModPrsL

Module Present

3B


28

LVTTL-O

IntL

Interrupt

3B


29


VccTx

+3.3V Power supply transmitter

2B

2

30


Vcc1

+3.3V Power supply

2B

2

31

LVTTL-I

InitMode

Initialization mode; In legacy QSFP

applications, the InitMode pad is called LPMODE

3B


32


GND

Ground

1B

1

33

CML-I

Tx3p

Transmitter Non-Inverted Data

Input

3B


34

CML-I

Tx3n

Transmitter Inverted Data Input

3B


35


GND

Ground

1B

1

36

CML-I

Tx1p

Transmitter Non-Inverted Data

Input

3B


37

CML-I

Tx1n

Transmitter Inverted Data Input

3B


38


GND

Ground

1B

1

39


GND

Ground

1A

1

40

CML-I

Tx6n

Transmitter Inverted Data Input

3A


41

CML-I

Tx6p

Transmitter Non-Inverted Data

Input

3A


42


GND

Ground

1A

1

43

CML-I

Tx8n

Transmitter Inverted Data Input

3A


44

CML-I

Tx8p

Transmitter Non-Inverted Data

Input

3A


45


GND

Ground

1A

1

46


Reserved

For future use

3A

3

47


VS1

Module Vendor Specific 1

3A

3

48


VccRx1

3.3V Power Supply

2A

2

49


VS2

Module Vendor Specific 2

3A

3

50


VS3

Module Vendor Specific 3

3A

3

51


GND

Ground

1A

1

52

CML-O

Rx7p

Receiver Non-Inverted Data Output

3A


53

CML-O

Rx7n

Receiver Inverted Data Output

3A


54


GND

Ground

1A

1

55

CML-O

Rx5p

Receiver Non-Inverted Data Output

3A


56

CML-O

Rx5n

Receiver Inverted Data Output

3A


57


GND

Ground

1A

1

58


GND

Ground

1A

1

59

CML-O

Rx6n

Receiver Inverted Data Output

3A


60

CML-O

Rx6p

Receiver Non-Inverted Data Output

3A


61


GND

Ground

1A

1

62

CML-O

Rx8n

Receiver Inverted Data Output

3A


63

CML-O

Rx8p

Receiver Non-Inverted Data Output

3A


64


GND

Ground

1A

1

65


NC

No Connect

3A

3

66


Reserved

For future use

3A

3

67


VccTx1

3.3V Power Supply

2A

2

68


Vcc2

3.3V Power Supply

2A

2

69


Reserved

For Future Use

3A

3

70


GND

Ground

1A

1

71

CML-I

Tx7p

Transmitter Non-Inverted Data Input

3A


72

CML-I

Tx7n

Transmitter Inverted Data Input

3A


73


GND

Ground

1A

1

74

CML-I

Tx5p

Transmitter Non-Inverted Data Input

3A


75

CML-I

Tx5n

Transmitter Inverted Data Input

3A


76


GND

Ground

1A

1

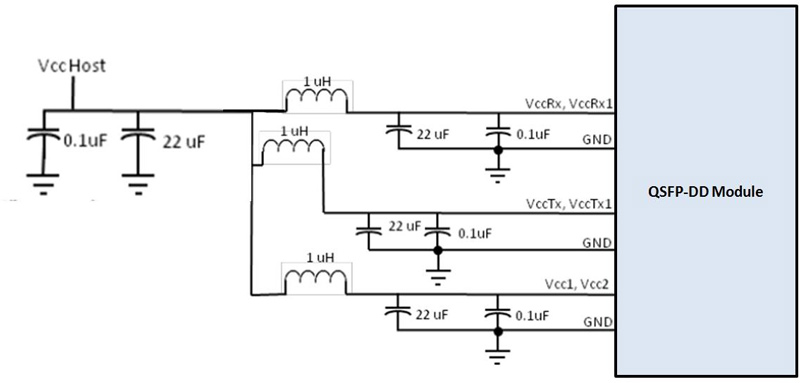

Recommended Power Supply Filter

Recommended Power Supply Filter of 400Gb/s QSFP-DD FR4 2km Transceiver

Figure 3. Recommended Power Supply Filter

Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.


Recommended Operating Conditions and Power Supply Requirements

Parameter

Symbol

Min

Typical

Max

Units

Notes

Operating Case

Temperature

TOP

0


70

degC


Power Supply

Voltage

VCC

3.135

3.3

3.465

V


Data Rate, each Lane



26.5625


GBd

PAM4

Data Rate Accuracy


-100


100

ppm


Pre-FEC Bit Error Ratio




2.4x10-4



Post-FEC Bit Error Ratio




1x10-12


1

Link Distance

D

0.002


2

km

2


Notes:

1. FEC provided by host system.

2. FEC required on host system to support maximum distance.


Electrical Characteristics

The following electrical acteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Test

Point

Min

Typical

Max

Units

Notes

Power Consumption




12

W


Supply Current

Icc



3.63

A


Transmitter (each Lane)

Signaling Rate, each Lane

TP1

26.5625 ± 100 ppm

GBd


Differential

pk-pk

 Input

Voltage

Tolerance

TP1a

900



mVpp

1

Differential

Termination

Mismatch

TP1



10

%



Differential

Input

Return

Loss


TP1

IEEE 802.3-

2015

Equation

(83E-5)




dB



Differential to

Common

Mode Input

Return Loss


TP1

IEEE 802.3-

2015

Equation

(83E-6)




dB


Module

Stressed

 Input Test

TP1a

See IEEE 802.3bs 120E.3.4.1



2

Single-ended

Voltage

Tolerance

Range (Min)

TP1a

-0.4 to 3.3

V


DC Common

Mode Input

Voltage

TP1

-350


2850

mV

3

Receiver

(each Lane)

Signaling Rate,

each lane

TP4

26.5625 ± 100 ppm

GBd


Differential

Peak-to-Peak

Output

Voltage

TP4



900

mVpp


AC Common

Mode Output

Voltage, RMS

TP4



17.5

mV


Differential

Termination

Mismatch

TP4



10

%



Differential

Output

Return Loss


TP4

IEEE 802.3-

2015

Equation

(83E-2)






Common to

Differential

Mode Conversion

Return Loss


TP4

IEEE 802.3-

2015

Equation

(83E-3)





Transition Time,

20% to 80%

TP4

9.5



ps


Near-end

Eye Symmetry

Mask

Width (ESMW)

TP4


0.265


UI


Near-end

Eye Height,

Differential

TP4

70



mV


Far-end

Eye Symmetry

Mask

Width (ESMW)

TP4


0.2


UI


Far-end

Eye Height,

Differential

TP4

30



mV


Far-end

 Pre-cursor

ISI Ratio

TP4

-4.5


2.5

%


Common

Mode Output

Voltage (Vcm)

TP4

-350


2850

mV

3


Notes:

1. With the exception to IEEE 802.3bs 120E.3.1.2 that the pattern is PRBS31Q or scrambled idle.

2. Meets BER specified in IEEE 802.3bs 120E.1.1.

3. DC common mode voltage generated by the host. Specification includes effects of ground offset voltage.

Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Units

Notes



Wavelength Assignment

L0

1264.5

1271

1277.5

nm



L1

1284.5

1291

1297.5

nm



L2

1304.5

1311

1317.5

nm



L3

1324.5

1331

1337.5

nm



Transmitter


Data Rate, each Lane


53.125 ± 100 ppm

GBd



Modulation Format


PAM4




Side-mode

Suppression Ratio

SMSR

30



dB



Total Average

Launch Power

PT



9.3

dBm



Average Launch

Power, each Lane

PAVG

-3.3


3.5

dBm

1


Outer Optical

Modulation

Amplitude (OMAouter),

each Lane

POMA

-0.3


3.7

dBm

2


Launch Power in

OMAouter minus

TDECQ, each Lane

for ER ≥ 4.5dB

for ER < 4.5dB



-1.7

-1.6




dB



Transmitter and

Dispersion Eye

Closure for PAM4,

each Lane

TDECQ



3.4

dB



TDECQ – 10*log10(Ceq),

each Lane




3.4

dB

3


Extinction Ratio

ER

3.5



dB



Difference in

Launch Power

between any

Two Lanes

(OMAouter)





4


dB



RIN17.1OMA

RIN



-136

dB/Hz



Optical Return

 Loss Tolerance

TOL



17.1

dB



Transmitter Reflectance

RT



-26

dB



Transmitter Transition

Time




17

ps



Average Launch

Power of OFF

Transmitter,

each Lane

Poff



-20

dBm



Receiver


Data Rate,

each Lane


53.125 ± 100 ppm

GBd



Modulation Format


PAM4



Damage Threshold,

each Lane

THd

4.5



dBm

4

Average Receive Power,

each Lane


-7.3


3.5

dBm

5

Receive Power

 (OMAouter),

each Lane




3.7

dBm


Difference in

Receiver Power

between any

Two Lanes

(OMAouter)





4.1


dB


Receiver

Sensitivity (OMAouter),

each Lane

SEN



Equation (1)

dBm

6

Stressed Receiver

Sensitivity

(OMAouter),

each Lane

SRS



-2.6

dBm

7

Receiver Reflectance

RR



-26

dB


LOS Assert

LOSA

-20



dBm


LOS De-assert

LOSD



-10.3

dBm


LOS Hysteresis

LOSH

0.5



dB


Stressed Conditions

for Stress Receiver

Sensitivity (Note 8)

Stressed Eye

 Closure for PAM4

(SECQ),

 Lane under Test



3.4


dB


SECQ – 10*log10(Ceq),

Lane under Test




3.4

dB


OMAouter of

 each Aggressor Lane



1.5


dBm


Modulation Format


PAM4





Notes:

1. Average launch power, each lane (min) is informative and not the principal indicator of signal strength. A transmitter with launch power below this value cannot be compliant; however, a value above this does not ensure compliance.

2. Even if the TDECQ < 1.4 dB for an extinction ratio of ≥ 4.5 dB or TDECQ < 1.3 dB for an extinction ratio of < 4.5 dB, the OMAouter (min) must exceed the minimum value specified here.

3. Ceq is a coefficient defined in IEEE Std 802.3-2018 clause 121.8.5.3 which accounts for reference equalizer noise enhancement.

4. Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance.

5. The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level.

6. Receiver sensitivity (OMAouter) is informative and is defined for a transmitter with a value of SECQ up to 3.4 dB. Receiver sensitivity should meet Equation (1), which is illustrated in Figure 4.


Where:

RS is the receiver sensitivity, and

SECQ is the SECQ of the transmitter used to measure the receiver sensitivity.

7. Measured with conformance test signal at TP3 for the BER equal to 2.4x10-4.



Digital Diagnostic Functions

The following digital diagnostic acteristics are defined over the normal operating conditions unless otherwise specified.

Parameter

Symbol

Min

Max

Units

Notes

Temperature Monitor

Absolute Error


DMI_Temp


-3


3


degC

Over operating temperature range

Supply Voltage

Monitor

Absolute Error

DMI _VCC

-0.1

0.1

V

Over full operating

range

Channel RX

Power Monitor

Absolute Error


DMI_RX_Ch


-2


2


dB


1

Channel Bias Current

Monitor

DMI_Ibias_Ch

-10%

10%

mA


Channel TX

Power Monitor

Absolute Error

DMI_TX_Ch

-2

2

dB

1


Notes:

1. Due to measurement accuracy of different single mode fibers, there could be an additional +/-1 dB fluctuation, or a +/- 3 dB total accuracy.


Outline Drawing (mm)

Outline Drawing (mm) of 400Gb/s QSFP-DD FR4 2km Transceiver


Applications

● Data Center Interconnect

● 400G Ethernet

● Infiniband interconnects

● Enterprise networking


Date Version Description Download
2025-03-17 Datasheet_400G QSFP-DD FR4 1310nm 2km_LA-OT-400G-FR4
How Can We Help You Today
Lastest News & Blog about Lanbras
OFC 2025 - Explore the Thriving and Ever
The 2025 Optical Fiber Communications Conference and Exhibition (OFC) is back to solidify its status as the premier global event for optical networking and communications. With over 13,500 expected re...
Mar 10, 2025
Learn More
MWC25 Barcelona - Where Technology and Commerce Converge
MWC Barcelona 2025 is the one time of year where everyone who’s anyone, in the world of connectivity, comes together under one roof. Tens of thousands of senior leaders from top global companies, int...
Feb 10, 2025
Learn More
INTERSEC DUBAI 2025
Intersec Dubai - The world’s leading trade fair for security, surveillance and fire protection.INTERSEC DUBAI 2025JAN 14–16 2025Dubai World Trade CenterIntersec will mark its 26th edition from 14–1...
Jan 05, 2025
Learn More
Follow us and the future of network.

Subscribe now, you can get over 100 valuable resources and white papers.

Follow us also can get the latest products and industry information in our members emails. Learn Details>>>

Lanao Communication Technology Limited.
Products and Solutions Inquiries
