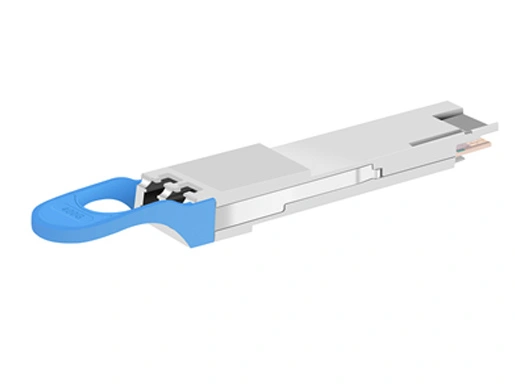

400Gb/s QSFP-DD DCO 120km Transceiver

LA-OT-400G-ZR
400G ZR QSFP-DD DCO modules are based on DP- 16QAM supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization.
Overview
Specifications
Connectivity Solutions
Models
Resources

400G ZR QSFP-DD DCO modules are based on DP- 16QAM supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. Chromatic dispersion compensation can be applied to the receive side of the demodulator. This module is managed utilizing the Two Wire Interface that is specified in the Common Management Interface Specification (CMIS).


The module uses a 76-pin QSFP-DD MSA QSFP-DD Hardware Specification connector for all electrical interfaces with the host card, whereas the optical interfaces on the line side are provided through the optical receptacles on the QSFP-DD. The module can be portioned into three functional parts: TX path, RX path and Control & Power block.


The host interface is comprised of a total of 8 high-speed SerDes lanes. This allows module to support one interfaces for 400G application: an independent double 4-Lane mode client interfaces (for 400GbE application) and four independent double lane mode client interfaces (for 4*100GbE application).


The management communication interface provides a number of elementary management operations that allow the host to read from or write to byte-sized management registers in the management memory map of the module. There are read and write operations both for single bytes and for contiguous byte sequences. Two types of read operations, either with implicit addressing (read from current address) or with explicit addressing, are supported.


The management communication interface distinguishes a role and a s role. The host shall be the and the module shall be the s.


The initiates all operations that lead to data transfer. Data can be transferred from the to the s (in write operations) and from the s to the (in read operations).


Features

● Support Flex-grid channel spacing DWDM in C-band

● Support Client-side Interfaces: 400GAUI-8/4*100GAUI-2

● Support Line-side DP-16QAM with CFEC

● Standard QSFP-DD type 2 form factor

● 76pin QSFP-DD MSA compliant connector

● Compliant to CMIS 5.0

● Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1

● OIF-400ZR-01.0_reduced2.pdf

● RoHS compliant

Typical Application

The application field of the module is widely used from short haul (ZR) to Metro(MR) interconnects. As shown  in figure1, it is comprised of high-data lanes, a single 3.3V power supply, an IIC interface for module control and status report, and dedicated alarm and control pins (not shown on the figure1).


Typical Application of 400Gb/s QSFP-DD DCO 120km Transceiver

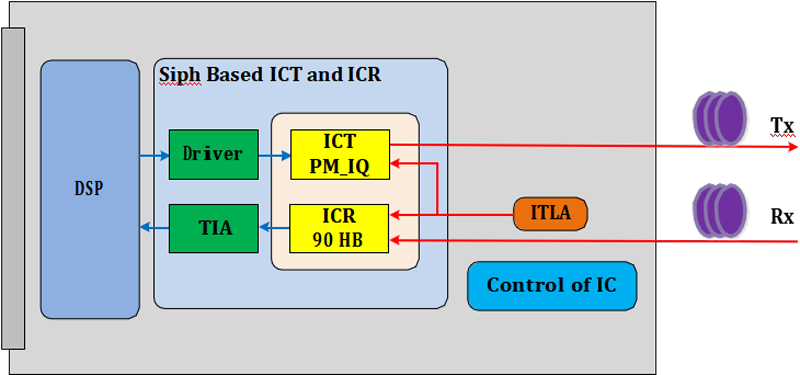

Figure 1. Transceiver Block Diagram


Host Interface

The module support for wide applications with Host interfaces: 400GAUI-8/100GUI-2. The Host interface conform to existing protocol standards and operate over standard physical layer specifications. The termination, mapping and/or aggregation of this signal is into an internal ZR frame structure. The ZR frame structure is then adapted to the CFEC engine and DSP framed for transmission over the coherent media Interface. The Host interface signaling conform to existing protocol and electrical standards as defined by IEEE 802.3TM-2018.

The Host Interface compliant to very short reach high speed chip-to-module electrical interface CEI-56G- VSR-PAM4 for PAM4 coding.

Host Interface

Application Data Rate

Lane Count

Lane Signaling Rate

Modulation

400GAUI-8

425.00 Gb/s

8

26.5625 GBaud (+/- 100 ppm)

PAM4

4*100GAUI-8

4*106.25 Gb/s

8

26.5625 GBaud (+/- 100 ppm)

PAM4


Media Interface

The media interface utilizes DP-16QAM modulation, polarization diversity coherent detection, and advanced electronic link equalization with omatic dispersion and differential group delay compensation.


The module terminates the host interface signal then maps and aggregates them into an internal ZR frame structure. The ZR frame structure is then adapted to the CFEC engine and DSP framed for transmission over the coherent media interface.

Application Bit Rate

Baud Rate

Modulation

FEC

478.75 Gb/s

59.84375GBd

DP-16QAM

OFEC


Host Electrical Connector & Pin Assignments

The electrical interfaces, including pad assignments for data, control, status and power supplies and host PCB layout requirements, of the module is fully compliant with the QSFP-DD MSA QSFP-DD-Hardware Specification, Rev 5.0.


The case of the QSFP-DD module is isolated from the module’s circuit ground, GND, to provide the equipment designer flexibility regarding connections between external electromagnetic interference shields and circuit ground, GND, of the module.

Host Electrical Connector & Pin Assignments of 400Gb/s QSFP-DD DCO 120km Transceiver

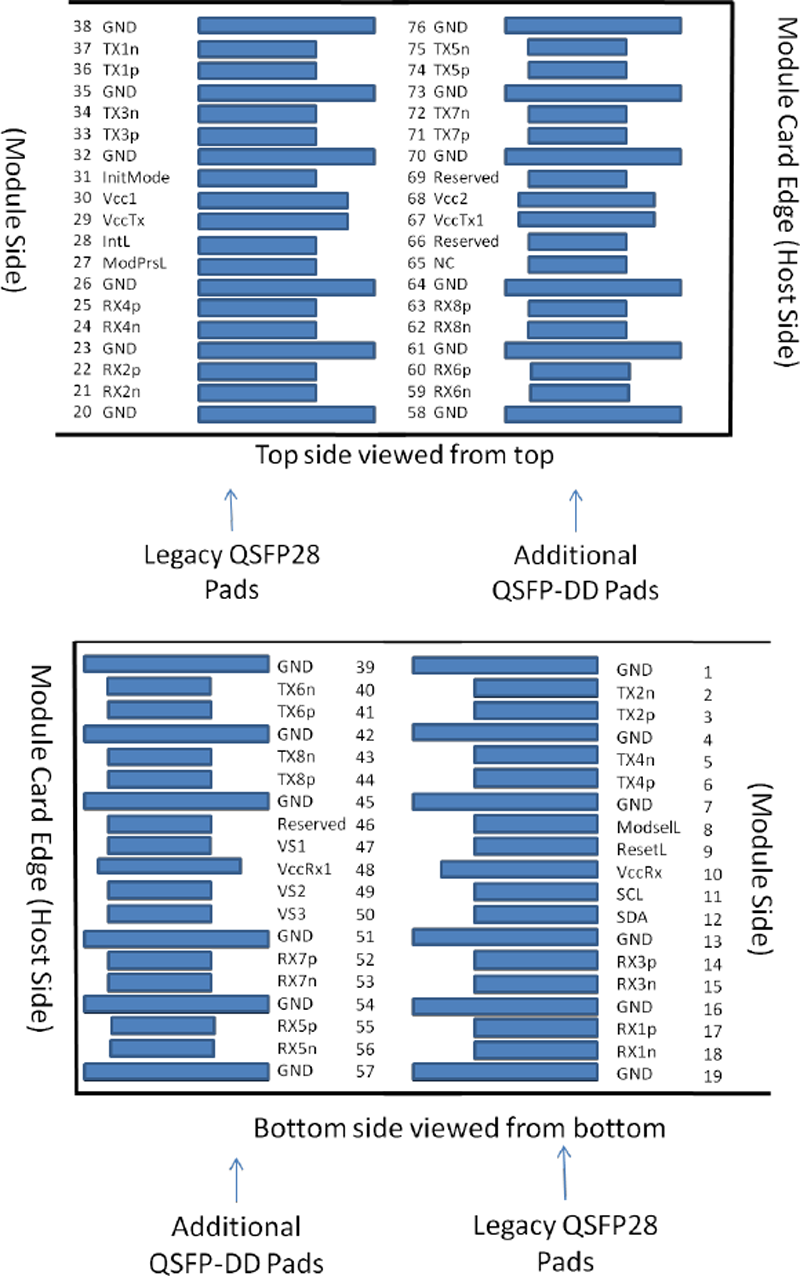

Figure 2. MSA Compliant Connector


Pin #

Logic

Symbol

Deion

Plug Sequence

1


GND

Ground

1B

2

CML-I

Tx2n

Transmitter Inverted Data Input

3B

3

CML-I

Tx2p

Transmitter Non-Inverted Data Input

3B

4


GND

Ground

1B

5

CML-I

Tx4n

Transmitter Inverted Data Input

3B

6

CML-I

Tx4p

Transmitter Non-Inverted Data Input

3B

7


GND

Ground

1B

8

LVTTL-I

ModSelL

Module Select

3B

9

LVTTL-I

ResetL

Module Reset

3B

10


VccRx

+3.3V Power Supply Receiver

2B

11

LVCMOS-I/O

SCL

2-wire serial interface clock

3B

12

LVCMOS-I/O

SDA

2-wire serial interface data

3B

13


GND

Ground

1B

14

CML-O

Rx3p

Receiver Non-Inverted Data Output

3B

15

CML-O

Rx3n

Receiver Inverted Data Output

3B

16

GND

Ground

1B


17

CML-O

Rx1p

Receiver Non-Inverted Data Output

3B

18

CML-O

Rx1n

Receiver Inverted Data Output

3B

19


GND

Ground

1B

20


GND

Ground

1B

21

CML-O

Rx2n

Receiver Inverted Data Output

3B

22

CML-O

Rx2p

Receiver Non-Inverted Data Output

3B

23


GND

Ground

1B

24

CML-O

Rx4n

Receiver Inverted Data Output

3B

25

CML-O

Rx4p

Receiver Non-Inverted Data Output

3B

26


GND

Ground

1B

27

LVTTL-O

ModPrsL

Module Present

3B

28

LVTTL-O

IntL

Interrupt

3B

29


VccTx

+3.3V Power supply transmitter

2B

30


Vcc1

+3.3V Power supply

2B

31

LVTTL-I

InitMode

Initialization mode; In legacy QSFP applications, the InitMode pad is called LPMODE

3B

32


GND

Ground

1B

33

CML-I

Tx3p

Transmitter Non-Inverted Data Input

3B

34

CML-I

Tx3n

Transmitter Inverted Data Input

3B

35


GND

Ground

1B

36

CML-I

Tx1p

Transmitter Non-Inverted Data Input

3B

37

CML-I

Tx1n

Transmitter Inverted Data Input

3B

38


GND

Ground

1B

39


GND

Ground

1A

40

CML-I

Tx6n

Transmitter Inverted Data Input

3A

41

CML-I

Tx6p

Transmitter Non-Inverted Data Input

3A

42


GND

Ground

1A

43

CML-I

Tx8n

Transmitter Inverted Data Input

3A

44

CML-I

Tx8p

Transmitter Non-Inverted Data Input

3A

45


GND

Ground

1A

46


Reserved

For future use

3A

47


VS1

Module Vendor Specific 1

3A

48


VccRx1

3.3V Power Supply

2A

49


VS2

Module Vendor Specific 2

3A

50


VS3

Module Vendor Specific 3

3A

51


GND

Ground

1A

52

CML-O

Rx7p

Receiver Non-Inverted Data Output

3A

53

CML-O

Rx7n

Receiver Inverted Data Output

3A

54


GND

Ground

1A

55

CML-O

Rx5p

Receiver Non-Inverted Data Output

3A

56

CML-O

Rx5n

Receiver Inverted Data Output

3A

57


GND

Ground

1A

58


GND

Ground

1A

59

CML-O

Rx6n

Receiver Inverted Data Output

3A

60

CML-O

Rx6p

Receiver Non-Inverted Data Output

3A

61


GND

Ground

1A

62

CML-O

Rx8n

Receiver Inverted Data Output

3A

63

CML-O

Rx8p

Receiver Non-Inverted Data Output

3A

64


GND

Ground

1A

65


NC

No Connect

3A

66


Reserved

For future use

3A

67


VccTx1

3.3V Power Supply

2A

68


Vcc2

3.3V Power Supply

2A

69


Reserved

For Future Use

3A

70


GND

Ground

1A

71

CML-I

Tx7p

Transmitter Non-Inverted Data Input

3A

72

CML-I

Tx7n

Transmitter Inverted Data Input

3A

73


GND

Ground

1A

74

CML-I

Tx5p

Transmitter Non-Inverted Data Input

3A

75

CML-I

Tx5n

Transmitter Inverted Data Input

3A

76


GND

Ground

1A


Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Min

Max

Units

Notes

Storage Temperature

-40

85


Storage Humidity (Relative)

-

85

%

no-Condensing

Case Temperature

0

75


Operating Humidity (Relative)

-

85

%

no-Condensing

Short term Operating Case Temperature


80

<24 hours

Power Supply Absolute Range

-0.3

3.63

V


RX Optical Maximum Input Power

-

10

dBm



Operating Conditions

Parameter

Min

Max

Units

Notes

Operating Case Temperature

0

75


Operating Humidity (Relative)

-

85

%

no-Condensing

Power Supply Operating Range

3.135

3.465

V


RX Optical Input Power

-

0

dBm



Power Supply

The 400G ZR QSFP-DD DCO is a Power Class 8 module. In order to avoid exceeding the host system power capacity, upon hot-plug, power cycle or reset, all QSFP-DD modules shall power up in Low Power  Mode if LPMode is asserted. If LPMode is not asserted the module will proceed to High Power Mode without host intervention. Specification values for maximum instantaneous, sustained and steady state currents at each power class are given in table 5. The power supply requirements are specified in the table below.

Parameter

Min

Typical

Max

Units

Notes

3.3V DC Power

Supply Voltage

3.135

3.3

3.465

V


3.3V DC Power

 Supply Current



7

A


Power Dissipation



18

W


Low Power Consumption



1.5

W


Module Inrush Current



100

mA/us


Turn-off Current

- 100



mA/us


Power Supply Noise



25

mV



Hardware Control and Status Pins

In addition to the 2-wire serial interface the module has the following low speed signals for control and status:

● ModSelL

● ResetL

● LPMode

● ModPrsL

● IntL

● Epps


ModSelL

The ModSelL is an input signal that shall be pulled to Vcc in the QSFP-DD module. When held low by the host, the module responds to 2-wire serial communication commands. The ModSelL allows the use of multiple QSFP-DD modules on a single 2-wire interface bus. When ModSelL is “High”, the module shall not respond to or acknowledge any 2-wire interface communication from the host.


In order to avoid conflicts, the host system shall not attempt 2-wire interface communications within the ModSelL de-assert time after any QSFP-DD modules are deed. Similarly, the host must wait at least for the period of the ModSelL assert time before communicating with the newly ed module. The assertion and de- asserting periods of different modules may overlap as long as the above timing requirements are met.


ResetL

The ResetL signal shall be pulled to Vcc in the module. A low level on the ResetL signal for longer than the minimum pulse length (t_Reset_init) initiates a complete module reset, returning all user module settings to their default state.


LPMode

LPMode is an input signal. The LPMode signal shall be pulled up to Vcc in the QSFP-DD module. LPMode is used in the control of the module power mode.

See CMIS Section 6.3.1.3.


ModPrsL

ModPrsL shall be pulled up to Vcc Host on the host board and pulled low in the module. The ModPrsL is asserted “Low” when the module is ed. The ModPrsL is deasserted “High” when the module is physically absent from the host connector due to the pull-up resistor on the host board.


Low speed signaling other than the SCL and SDA interface is based on Low Voltage TTL (LVTTL) operating at Vcc. Vcc refers to the generic supply voltages of VccTx, VccRx, Vcc host or Vcc1. Hosts shall use a pull-up resistor connected to Vcc host on each of the 2-wire interface SCL (clock), SDA (data), and all low speed status outputs. The SCL and SDA is a hot plug interface that may support a bus topology. During module ion or removal, the module may implement a pre-ge circuit which prevents corrupting data transfers from other modules that are already using the bus.


The QSFP-DD low speed electrical specifications are given in table 6. This specification ensures compatibility between host bus s and the 2-wire interface.


Parameter

Symbol

Min

Max

Unit

Condition

SCL and SDA

VOL

0

0.4

V

IOL(max)=3 mA for fast mode, 20 mA for Fast-mode plus

SCL and SDA

VIL

-0.3

Vcc * 0.3

V


VIH

Vcc * 0.7

Vcc + 0.5

V


Capacitance for

SCL and SDA

I/O signal

Ci


14

pF


Total bus

capacitive load

for SCL and SDA

Cb


100

pF

For 400 kHz clock rate use 3.0k Ohms Pull-up resistor, max.



200

pF

For 400 kHz clock rate use 1.6k Ohms Pull-up resistor, max.

LPMode,

ResetL,

ModSelL

and

ePPS

VIL

-0.3

0.8

V


VIH

2

Vcc + 0.3

V


LPMode,

ResetL

and

ModSelL

|Iin|


360

uA

0V<vin<vcc< span="" style="box-sizing: border-box"><vcc< style="box-sizing: border-box">

ePPS

|Iin|


TBD

uA

0V<vin<vcc< span="" style="box-sizing: border-box"><vcc< style="box-sizing: border-box">

IntL

VOL

0

0.4

V

IOL=2.0 mA

VOH

Vcc – 0.5

Vcc + 0.3

V

10k Ohms pull-up to Host Vcc

ModPrsL

VOL

0

0.4

V

IOL=2.0 mA

VOH



V

ModPrsL can be implemented as a short-circuit to GND on the module


Physical Layer

The physical layer supporting communication between host and module is the Two Wire serial Interface (TWI). The TWI consists of a clock signal (SCL) and a data signal (SDA).

SCL and SDA comprise a 2-wire serial interface between the host and module using the TWI protocol. SCL is defined as the serial interface clock signal and SDA as the serial interface data signal. Both signals are open-drain and require pull-up resistors to +3.3V on the host. The pull-up resistor value shall be 1k ohms to 4.7k ohms depending on capacitive load.

Both signals (SCL and SDA) are bidirectional open-collector pins and require an external pull-up to VCC on   the host PCB. Activating the line requires pulling it down (wired ). The total capacitance on the bus should not exceed 400pF.

This 2-wire interface supports bus speeds:

· Fast mode - I2C Fast-mode (Fm) ≤ 400 kbit/s

· Fast mode plus - I2C Fast-mode Plus (Fm+) ≤ 1 Mbit/s

The SDA signal is bi-directional. During binary data transfer, the SDA signal shall transition when SCL is low.SDA transitions when SCL is high are used to mark either the beginning (START) or ending (STOP) of a data transfer.


High Speed Electrical Specifications

The transmitter and receiver comply with the CEI-56G-VSR-PAM4 electrical specification (OIF-CEI-04.0).

The data lines are AC-coupled and terminated in the module per the following figure from the QSFP-DD MSA. The high-speed signals follow the electrical specifications of CEI-56G-VSR-PAM as defined in OIF-CEI-04.0.

The high speed signals consist of 8 transmit and 8 receive differential pairs identified as TX[8:1]p / TX[8:1]n  and RX[8:1]p / RX[8:1]n. These signals can be operated in 400GAUI-8 depending on the capability of the host.400GAUI-8 mode provides 8 differential lanes using PAM4 signaling operating at 26.5625 GBaud. This results in 8 lanes of 50Gb/s for a total of 400Gb/s. This mode allows connection to PMD configurations of 400GUAI-8.

The following electrical acteristics are defined over the Recommended Operating Environment unless otherwise specified.


Electrical Characteristics for Transmitter

Parameter

Min

Typical

Max

Units

Notes

Signal Rate,

each Lane

26.5625±100ppm

GBaud


Differential

Peak-Peak Input

Voltage Tolerance



900

mVpp



Electrical Characteristics for Receiver

Parameter

Min

Typical

Max

Units

Notes

Signal Rate,

each Lane

26.5625±100ppm

GBaud


Differential

Peak-Peak Input

Voltage Tolerance


750

900

mVpp


Transition Time,

20% to 80%


9.5


ps



Loopback

The module support loopback functionality. The host loopback (Loopback  ①) and the network loopback (Loopback  ②) are shown at bellowing figure 4. For details on controlling the loopback mode, please refer to   Reference [2]. In optional loopback, TXn is looped back to RXn, for example TX0+ to RX0+, on both host and media side.


Loopback of 400Gb/s QSFP-DD DCO 120km Transceiver

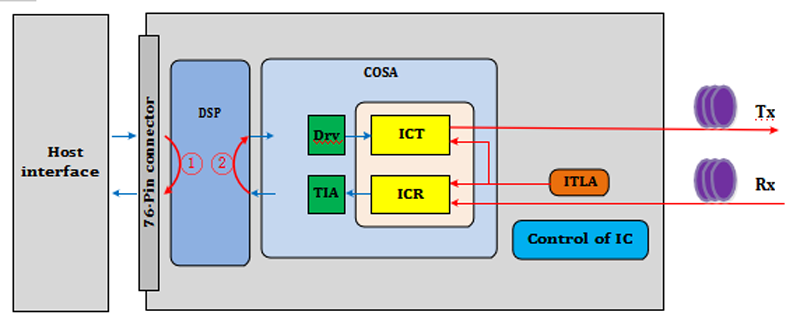

Figure3:Module Loopback Orientation


Optical Specifications

All specifications given in this document are End-of-Life numbers and are valid under operating conditions unless specific noted:


Optical Transmitter Specifications

Parameter

Min

Typ.

Max

Unit

Notes

Transmitter

Frequency

Range

191.3

193.7

196.1

THz

C band 75GHz ITU-T grid. Frequency range over which the specifications hold unless noted otherwise.

Laser Frequency Stability

-1.8


1.8

GHz

Frequency stability relative to ITU grid.

Laser Frequency Accuracy

-1.8


1.8

GHz


Laser Frequency

Fine Tuning Range

-6.0


6.0

GHz


Fine Tuning Resolution


100


MHz


Channel Tuning Speed

-


60

s


Laser Line Width



100

kHz


Transmitter Output

Power Range


-9.5


dBm


Transmitter Laser

Disable Time



180

ms


Output Power Stability

-0.5


0.5

dB

Difference over temperature, time, wavelength and aging.

Output Power Accuracy

-2


2

dB

Difference between the set value and

actual value over aging.

Transmitter

Turn-up Time

from Cold Start

-


120

s


Transmitter OSNR

(Inband)

34


-

dB/0.1nm


Transmitter

Back Reflectance

-


-24

dB


Transmitter Output Power

with TX Disabled

-


-20

dBm


Transmitter Polarization

Dependent Power

-


1.5

dB

Power deference between X and Y polarization


Optical Receiver Specifications

Parameter

Min

Typ.

Max

Unit

Notes

Receiver Frequency Range

191.3

193.7

196.1

THz


Input Power Range

-12


0

dBm

Signal power of the channel at the OSNR Penalty < 0.5dB

OSNR Sensitivity


24

26

dB/0.1nm


Receiver Sensitivity



-20

dBm

Input power needed to achieve post FEC

BER < 1E-15 when OSNR Tolerance > 26dB/0.1nm

Los Assert

-24


-20

dBm


Los Hysteresis

1.0


2.5

dB


CD Tolerance

2400



ps/nm

Tolerance to Chromatic Dispersion.

PMD Tolerance

10



ps

Tolerance to PMD with < 0.5 dB penalty to OSNR sensitivity.

Peak PDL Tolerance

3.5



dB

Tolerance to peak PDL with < 1.3 dB penalty to OSNR sensitivity when change in SOP is < =1 rad/ms.

Tolerance to

Change in SOP

50


-

rad/ms


Input Power

Transient Tolerance

-2


2

dB

Tolerance to change in input power with <0.5 dB penalty to OSNR sensitivity.

Input Power

Reading Accuracy

-2


2

dB


Optical Return Loss

-20



dB

Optical reflectance at Rx connector input.

Receiver Turn-up

Time

from Cold Start

-


120

s

From module reset, with valid optical input signal present.


Insertion, Extraction and Retention Force

Parameter

Min

Max

Unit

Note

Insertion Force


90

N


Extraction Force


50

N


Retention Force

90


N



EMI, EMC and ESD Specification

The module is compliant with the requirements listed in the table below when installed in the host equipment.

Parameter

Reference

Value

Unit

Notes

ESD Immunity

IEC 61000-4-2

8

kV

Contact Disge

15

kV

Air Disge

ESD (HBM model)

JEDEC JESD22-A114-B

1

kV

High-Speed Contacts

2

kV

Other pins

EMC Immunity

IEC 61000-4-3




EMI Emission

FCC Class B

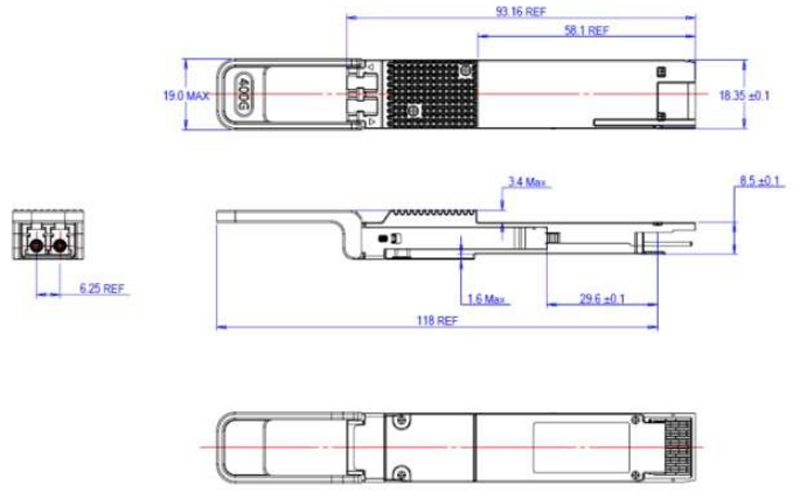

Outline Drawing (mm)

Outline Drawing (mm) of 400Gb/s QSFP-DD DCO 120km Transceiver
Figure4:QSFP-DD Module Mechanical drawing


Applications

● DCI

● Metro Network

Ordering Information
Part NumberLA-OT-400G-ZR
Data Rate (Gbps)400G
LaserDWDM Tunable
Distance(km)80~120km SMF
Temperature (oC) (Operating Case)0°C~+70°C


Date Version Description Download
2025-03-17 Datasheet_400G QSFP-DD DCO 120km_LA-OT-400G-ZR_V2.X
How Can We Help You Today
Lastest News & Blog about Lanbras
OFC 2025 - Explore the Thriving and Ever
The 2025 Optical Fiber Communications Conference and Exhibition (OFC) is back to solidify its status as the premier global event for optical networking and communications. With over 13,500 expected re...
Mar 10, 2025
Learn More
MWC25 Barcelona - Where Technology and Commerce Converge
MWC Barcelona 2025 is the one time of year where everyone who’s anyone, in the world of connectivity, comes together under one roof. Tens of thousands of senior leaders from top global companies, int...
Feb 10, 2025
Learn More
INTERSEC DUBAI 2025
Intersec Dubai - The world’s leading trade fair for security, surveillance and fire protection.INTERSEC DUBAI 2025JAN 14–16 2025Dubai World Trade CenterIntersec will mark its 26th edition from 14–1...
Jan 05, 2025
Learn More
Follow us and the future of network.

Subscribe now, you can get over 100 valuable resources and white papers.

Follow us also can get the latest products and industry information in our members emails. Learn Details>>>

Lanao Communication Technology Limited.
Products and Solutions Inquiries
