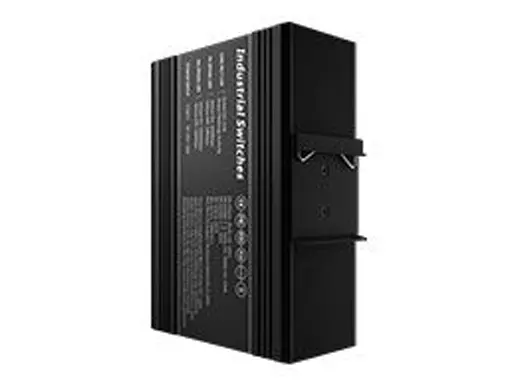

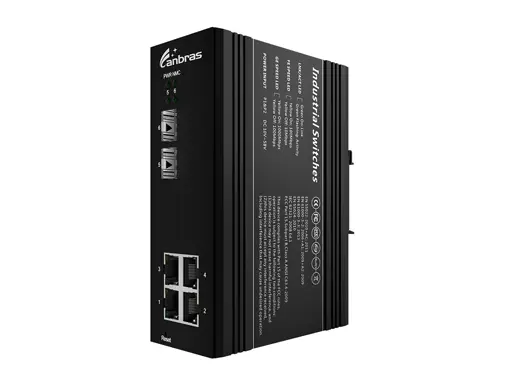

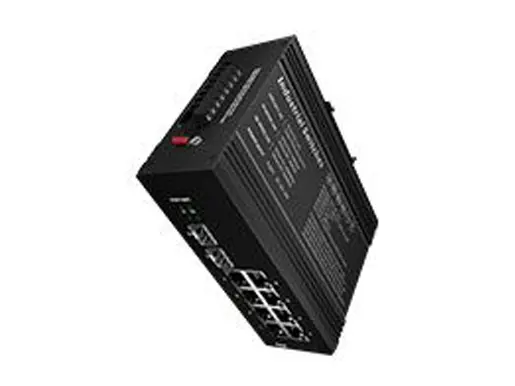

2x1000Base-X, 4x10/100/1000Base-T Managed Industrial Ethernet Switch (PoE Optional)

LA-IS7M2-G0204
Applied to various broadband data transmission fields like intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
Overview
Specifications
Connectivity Solutions
Models
Resources

This LA-IS7M2-G0204 Industrial Ethernet Switch uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +75℃ with stable and reliable performance.


The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

PART NOLA-IS7M2-G0204
Provider Mode Ports
Fixed Port2*1000 Base-X, 4*10/100/1000 Base-T
Management PortSupport console
Power InterfacePhoenix terminal, redundant dual
LED IndicatorsPWR, Link/ACT  LED
Cable Type & Transmission Distance
Twisted-pair0-100m(CAT5e,CAT6)
Monomode Optical Fiber20/40/60/80/100KM
Multimode Optical Fiber550m
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageDC10-58V
Total Power ConsumptionNon PoE <10W,PoE <132W
PoE (Support Optional)
PoE Port1-4
PoE Protocol802.3af,802.3at
Pin Assignment1,2,3,6
PoE ManagementSupport
Layer 2 Switching
Switching Capacity40G
Packet Forwarding Rate26.7Mpps
MAC Address Table16K
VLANSupport 4K
Buffer8M
Forwarding Delay<10us
MDX/MIDXSupport
Flow ControlSupport
Jumbo Frame10Kbytes
Spanning TreeSupport STP/RSTP/MSTP
Ring ProtocolSupport ERPS
Link AggregationSupport 12 group
MulticastSupport IGMP Snooping
Port MirroringSupport
Storm ControlSupport
Interface CountersSupport
QINQSupport
Convergence
ACLSupport ACL 500
Support IP standard ACL
Support MAC expand ACL
Support IP expand ACL
QOSSupport QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoS
Management
CLISupport
ConsoleSupport
TelnetSupport
WEB ManagementSupport
SNMPSupport SNMPv1/v2c
User ManagementSupport
System LogSupport
Configuration File Download/UploadSupport
Upgrade FirmwareSupport
Environment
Operating Temperature-40℃~+85℃
Storage Temperature-40℃~+85℃
Relative Humidity5%~95% (non-condensing)
Thermal MethodsFanless, natural cooling
MTBF100,000 hours
Mechanical Dimensions
Product Size143X104X48mm (W×H×D)
Installation MethodDIN-rail
Weight0.58KG around
EMC & Ingress Protection
IP LevelIP40
Surge Protection of PowerIEC 61000-4-5  Level 3 (4KV/2KV)(8/20us)
Surge Protection of Ethernet PortIEC 61000-4-5  Level 3 (4KV/2KV)(10/700us)
RSIEC 61000-4-3  Level 3 (10V/m)
EFIIEC 61000-4-4  Level 3 (1V/2V)
CSIEC 61000-4-6  Level 3 (10V/m)
PFMFIEC 61000-4-8  Level4(30A/m)
DIPIEC 61000-4-11  Level3 (10V)
EMICLASS A
ESDIEC 61000-4-2  Level 4 (8K/15K)
Free Fall0.5m
Authentication
AuthenticationCCC/CE/FCC/RoHS


Ordering Information
LA-IS7M2-G02042*1000Mbps SFP Port, 4*10/100/1000M RJ45 Port (PoE is optional)


Date Version Description Download
2025-03-11 LA-IS7M2-G0204
