Product Model
LA-SW-G0224P
Product Deion

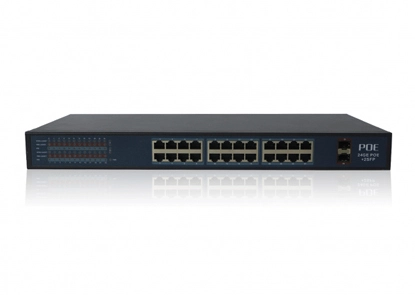

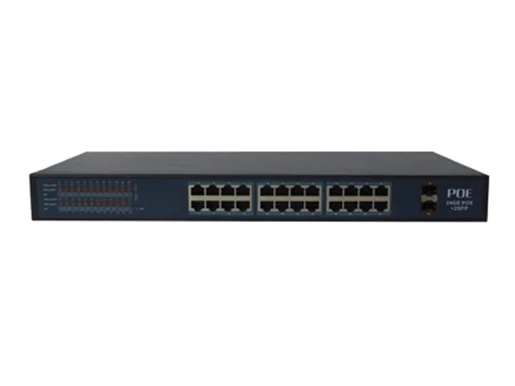

26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports, port 1-24 supports PoE IEEE 802.3af/at international standard, each port power is 15.4W/30W
Ordering Note
The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24) is mid-span(4/5+, 7/8- line pair) power supply
Package List | 26-Port Gigabit PoE Switch with 24 PoE+2 SFP Gigabit Optical Uplink |
AC Input Power Cable | |
Mounting Kits, User Guide, Warranty Card |
Product Name | 24-Port full gigabit PoE switch |
Model | LA-SW-G0224P |
Connector Type | 24x 10/100/1000M copper RJ45 Ports (All ports support MDI/MDIX auto sensing) Port 1-24: PoE port, max PoE output for each port is 30W. 2x 10/100/1000M SFP optical port 25-26. |
Network Media | 100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
Bandwidth | 52G |
MAC | 16K |
Network | IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at |
Power Supply | Input: AC100-240V, 50-60Hz |
PoE Ports | 24*PoE Ports |
PoE Port Power | Max 30W,Total power 400W |
PoE Standard | IEEE802.3af/at |
Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) |
Certification | CE Mark ,commercial CE/LVD EN60950 |
Radiation | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
Power Supply Type | 1,2(+)/3,6(-) (Default) ; 45(+),78(-) (Option) |
Product Size | 430mm*200mm*44mm,5kg |
Warranty | 3year |
Million HD surveillance transmission and power supply
Wireless AP distribution transmission and power supply
VoIP transmission, intelligent home systems
City intelligent traffic monitoring system (ITS), safe city, and wireless city
Highway surveillance system, electronic road surveillance, snapshot system
Large industrial factory& enterprise security surveillance system, network multifunction system
Remote multimedia teaching & campus surveillance, video conferencing systems
Building intercom, wireless communications, video surveillance
