240W Single Output Industrial DIN RAIL

NDR- 240 series

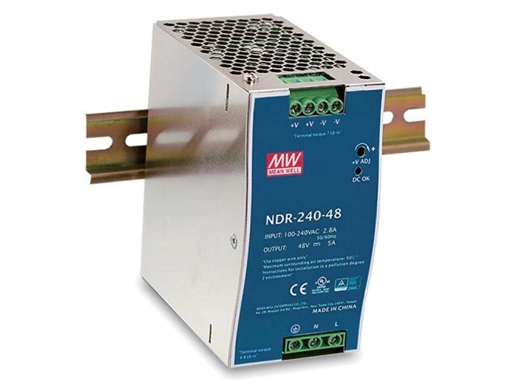

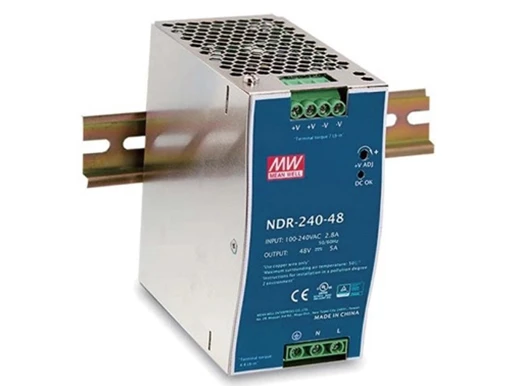

NDR-240 is one economical slim 240W Din rail power supply series, adaptto be installed on TS-35/7.5or TS-35/1 5 mounting rails. The body is designed 63mm in width, which allows space saving inside.
Overview
Specifications
Connectivity Solutions
Models
Resources

Features

● Universal AC input / Full range

● Built-in active PFC function

● protections: Short circuit / overload / over voltage / over temperature

● Cooling by free air convection

● Can be installed on DIN rail TS-35/7.5 or 15

● UL 508 (industrial control equipment) approved

● BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level .100% full load burn-in test

● 3 years warranty


Applications

● Industrial control system

● Semiconductor fabrication equipment

● Factory automation

● Electro-mechanical apparatus


NDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed onTS-35/7.5or TS-35/15 mounting rails, The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC inputfrom 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.


NDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -20'c and 70'c under ail convection. lt is equipped with constant current mode for over-load protection, fitting various inductiveor capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-240 a very competitive power supply solution for industrial applications.


MODELNDR-240-24NDR-240-48
OUTPUTDC VOLTAGE24V48V
RATED CURRENT10A5A
CURRENT RANGE0 ~ 10A0 ~ 5A
RATED POWER240W240W
RIPPLE & NOISE (max.)  Note.2150mVp-p150mVp-p
VOLTAGE ADJ. RANGE24 ~ 28V48 ~ 55V
VOLTAGE TOLERANCE  Note.3±1.0%±1.0%
LINE REGULATION±0.5%±0.5%
LOAD REGULATION±1.0%±1.0%
SETUP, RISE TIME1500ms, 100ms/230VAC          3000ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)28ms/230VAC          22ms/115VAC at full load
INPUTVOLTAGE RANGE           Note.490 ~ 264VAC           127 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
POWER FACTOR (Typ.)PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)88.50%90%
AC CURRENT (Typ.)2.5A/115VAC          1.3A/230VAC
INRUSH CURRENT (Typ.)20A/115VAC          35A/230VAC
LEAKAGE CURRENT<1mA / 240VAC
PROTECTIONOVERLOAD105 ~ 130% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE29 ~ 33V56 ~ 65V
Protection type : Shutdown o/p voltage, re-power on to recover
OVER TEMPERATUREShutdown o/p voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85℃ , 10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/℃ (0 ~ 50℃)
VIBRATIONComponent:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X,Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &SAFETY STARDSUL508,TUV BS EN/EN62368-1, EACTPTC 004, BSMI CNS14336-1, IS13252(Part1)/IEC60950-1 ,KC K60950-1(for 48V only)approved; (meet  BS EN/EN60204-1)
EMCWITHST VOLTAGEI/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
(Note 4)ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSIONCompliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, KSC 9832(for 48V only)

EMC IMMUNITYCompliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020,KSC 9835(for 48V only)
OTHERSMTBF1645.2K hrs min.      Telcordia SR-332 (Bellcore) ; 230.2K hrs min.       MIL-HDBK-217F (25℃)
DIMENSION63*125.2*113.5mm (W*H*D)
PACKING1Kg; 12pcs/13Kg/1.22CUFT
NOTE1. AII parameters NOT speciaIIY mentioned are measured at 230VAC input, rated Ioad and 25℃ of ambient temperature.
2. RippIe & noise are measured at 20MHz of bandwidth bY using a 12" twisted pair-wire terminated with a 0.1uf & 47uf paraIIeI capacitor.
3. ToIerance : incIudes set up toIerance, Iine reguIation and Ioad reguIation.
4. Derating maY be needed under Iow input voItage. PIease check the derating curve for more detaiIs.
5. InstaIIation cIearances : 40mm on top, 20mm on the bottom, 5mm on the Ieft and right side are recommended when Ioaded permanentIY with fuII power. In case the adjacent device is a heat source, 15mm cIearance is recommended.
6. The power suppIY is considered a component which wiII be instaIIed into a finaI equipment. The finaI equipment must be re-confirmed that it stiII meets EMC directives. For guidance on how to perform these EMC tests, pIease refer to “EMI testing of component power suppIies.”
7. The ambient temperature derating of 3.5℃/1000m with fanIess modeIs and of 5℃/1000m with fan modeIs for operating aItitude higher than 2000m(6500ft).
(as available on http://www.meanwell.com)
※ Product LiabiIitY DiscIaimer :For detaiIed information, pIease refer to https://www.meanwell.com/serviceDisclaimer.aspx
