200Gb/s QSFP-DD SR8 100m Transceiver

LA-OT-200G-SR8
Up to 28Gbps data rate per channel, 8 duplex channels transmitters and receivers, Integrated 850nm VCSEL array and PD array, Single MPO24 connector receptacle optical interface compliant.
Overview
Specifications
Connectivity Solutions
Models
Resources

Features

● Up to 28Gbps data rate per channel

● 8 duplex channels transmitters and receivers

● Integrated 850nm VCSEL array and PD array

● Single MPO24 connector receptacle optical interface compliant

● Single +3.3V power supply

● DDM function implemented

● Hot-pluggable QSFP-DD form factor

● Maximum link length of 100m on 24 core MPO OM4 (MMF) fiber

● Power dissipation:<4.5W

● International class 1 laser safety certified

● Operating temperature range: 0℃ ~ +70 ℃

● Compliant with ROHS10

Absolute Maximum Ratings

Parameters

Symbol

Unit

Min

Max

Storage Temperature Range

Ts

-40

85

Relative Humidity

RH

%

5

95

Power Supply Voltage

Vcc

V

-0.5

+3.6


Recommended Operating Conditions

Parameters

Symbol

Unit

Min.

Typical

Max

Operating Case

Temperature Range

Tc

0


70

Power Supply Voltage

Vcc

V

3.14

3.3

3.46

NRZ Bit Rate(Per channel)

BR

Gbps


25.78



Optical Characteristics

Parameters

Symbol

Unit

Min.

Typical

Max

Note

Transmitter(per Lane)

Signaling Speed per Lane


Gbps

25.78125

NRZ

Center wavelength


nm

840

850

860


RMS Spectral Width

SW

nm



0.6


Average Launch

Power per lane

TXPx

dBm

-8.4


2.4


Tx OMA per lane

TxOMA

dBm

-6.4


3


Difference in power

between

any two lane(OMA)

DPx

dBm



4


Average launch power

of off  transmitter

per lane


dBm



-30


Transmitter and

Dispersion eye

closure per lane

TDEC

dB



4.3


Launch power in

OMA minus   TDEC


dBm

-7.3




Optical Extinction

Ratio

ER

dB

2




Optical Return

Loss Tolerance

ORL

dB



12


Encircled Flux

FLX

dBm

>86% at 19um


<30%at 4.5um


Relative Intensity Noise

RIN

dB/Hz



RIN


Receiver(per Lane)

Signaling Speed per Lane


Gbps

25.78125

NRZ

Center wavelength


nm

840


860


Damage Threshold

DT

dBm

3.4




Average receive

power per lane

RXPx

dBm

-10.3


2.4


Receiver power

(OMA) per lane

RxOMA

dBm



3


Receiver reflectance

Rfl

dB



-12


vertical eye closure

penalty,  per lane


dB



1.9


Stressed Receive

Sensitivity(OMA) per lane

SRS

dBm



-5.2


Sensitivity(OMA) per lane

S

dBm



-10.3


LOS De-Assert

LOSD

dBm



-12


LOS Assert

LOSA

dBm

-30




LOS Hysteresis


dBm

0.5





Principle Diagram

Principle Diagram of 200Gb/s QSFP-DD SR8 100m Transceiver

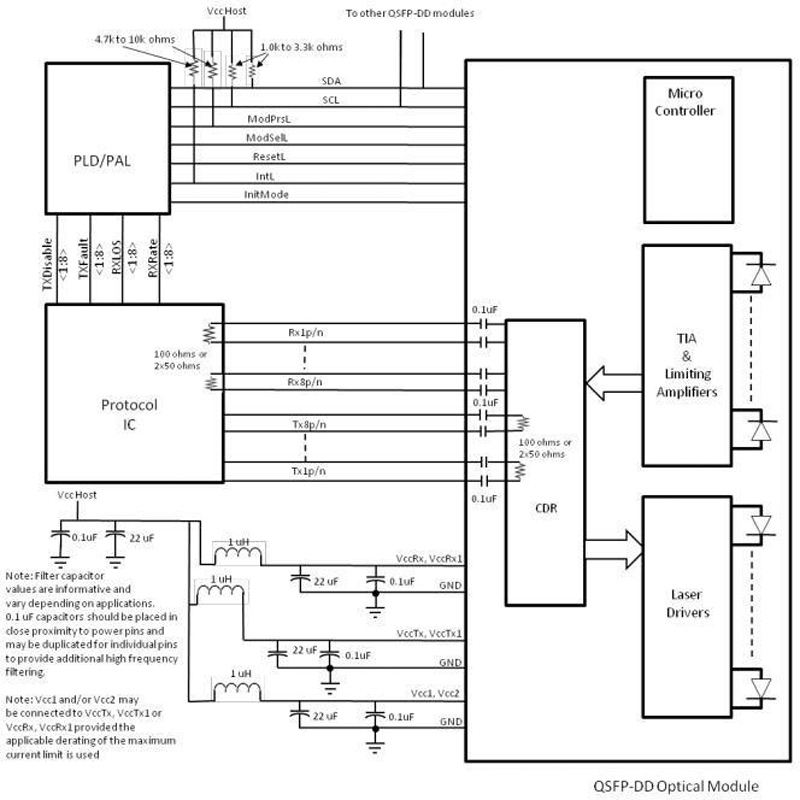

Figure 1. Module Principle Diagram


Electric Ports Definition

Parameters

Symbol

Unit

Min.

Typical

Max

Note

Supply Voltage

VCC

VCC3.3-Tx

VCC3.3-Rx

V

3.14

3.3

3.46


Supply Current

Icc

mA



1300


Power Consumptoin

Pc

W



4.5


Transceiver

Power-on

Initialize Time


ms



2000


Transmitter

Single Ended Input

VoltageTolerance

VinT

V

-0.3


4.0


Differential Data

Input Swing


VIN


mVp-p


300



1200


AC Common

Mode Output

Voltage(RMS)


mV

15




Differential Input

 Impedance


90

100

110


Receiver

Single Ended Input

VoltageTolerance

VoutR

V



0.2


Differential Data

Output Swing

Vout,PP

mVp-p

350


850


AC Common Mode

Output Voltage(RMS)


mV



7.5


Differential Output

Impedance


90

100

110


IIC communication

IIC Clock frequency


KHZ


100

400


clock stretching


us



500


Data hold time


ns

300





Pin Deion
Pin Deion of 200Gb/s QSFP-DD SR8 100m TransceiverPin Deion of 200Gb/s QSFP-DD SR8 100m Transceiver

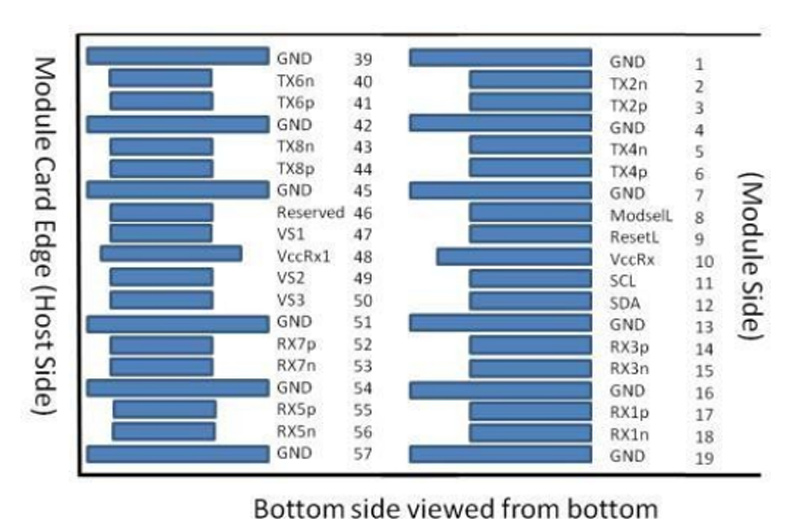

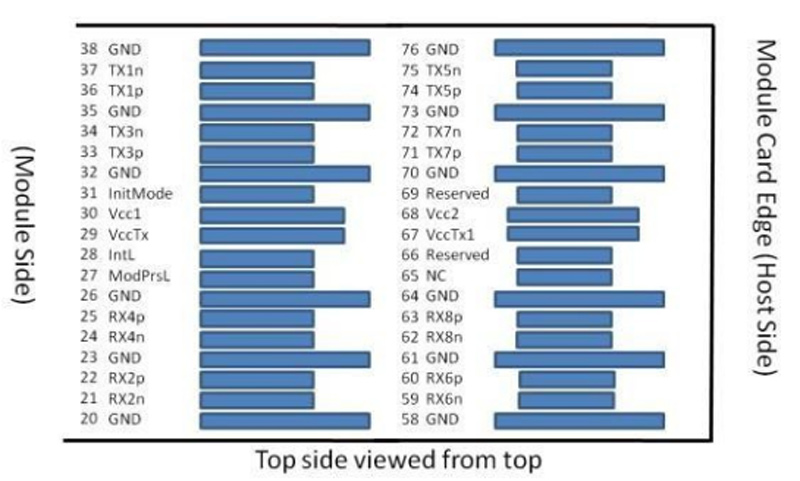

Figure 2. Electrical Pin-out Details


Pin

Logic

Symbol

Deion

Note

1


GND

Ground

1

2

CML-I

Tx2n

TransmitterInvertedDataInput


3

CML-I

Tx2p

TransmitterNon-InvertedDataInput


4


GND

Ground

1

5

CML-I

Tx4n

TransmitterInvertedDataInput


6

CML-I

Tx4p

TransmitterNon-InvertedDataInput


7


GND

Ground

1

8

LVTTL-I

ModSelL

ModuleSelect


9

LVTTL-I

ResetL

ModuleReset


10


VccRx

+3.3VPowerSupplyReceiver

2

11

LVCOMS-I/O

SCL

2-WireSerialInterfaceClock


12

LVCOMS-I/O

SDA

2-WireSerialInterfaceData


13


GND

Ground

1

14

CML-0

Rx3p

ReceiverNon-InvertedDataOutput


15

CML-0

Rx3n

ReceiverInvertedDataOutput


16


GND

Ground

1

17

CML-0

Rx1p

ReceiverNon-InvertedDataOutput


18

CML-0

Rx1n

ReceiverInvertedDataOutput


19


GND

Ground

1

20


GND

Ground

1

21

CML-0

Rx2n

ReceiverInvertedDataOutput


22

CML-0

Rx2p

ReceiverNon-InvertedDataOutput


23


GND

Ground

1

24

CML-0

Rx4n

ReceiverInvertedDataOutput


25

CML-0

Rx4p

ReceiverNon-InvertedDataOutput


26


GND

Ground

1

27

LVTTL-0

ModPrsL

ModulePresent


28

LVTTL-0

IntL

Interrupt


29


VccTx

+3.3VPowerSupplytransmitter

2

30


Vcc1

+3.3VPowerSupply

2

31

LVTTL-I

InitMode

Initialization mode; In legacyQSFPapplications,theIntiModepadisc

alledLPMode


32


GND


Ground

1

33

CML-I

Tx3p

TransmitterNon-InvertedDataInput


34

CML-I

Tx3n

TransmitterInvertedDataInput


35


GND

Ground

1

36

CML-I

Tx1p

TransmitterNon-InvertedDataInput


37

CML-I

Tx1n

TransmitterInvertedDataInput


38


GND

Ground

1

39


GND

Ground

1

40

CML-I

Tx6n

TransmitterInvertedDataInput


41

CML-I

Tx6p

TransmitterNon-InvertedDataInput


42


GND

Ground

1

43

CML-I

Tx8n

TransmitterInvertedDataInput


44

CML-I

Tx8p

TransmitterNon-InvertedDataInput


45


GND

Ground

1

46


Reserved

Forfutureuse

3

47


VS1

ModuleVendorSpecific1

3

48


VccRx1

+3.3VPowerSupplyReceiver

2

49


VS2

ModuleVendorSpecific2

3

50


VS3

ModuleVendorSpecific3

3

51


GND

Ground

1

52

CML-0

Rx7p

ReceiverNon-InvertedDataOutput


53

CML-0

Rx7n

ReceiverInvertedDataOutput


54


GND

Ground

1

55

CML-0

Rx5p

ReceiverNon-InvertedDataOutput


56

CML-0

Rx5n

ReceiverInvertedDataOutput


57


GND

Ground

1

58


GND

Ground

1

59

CML-0

Rx6n

ReceiverInvertedDataOutput


60

CML-0

Rx6p

ReceiverNon-InvertedDataOutput


61


GND

Ground

1

62

CML-0

Rx8n

ReceiverInvertedDataOutput


63

CML-0

Rx8p

ReceiverNon-InvertedDataOutput


64


GND

Ground

1

65


NC

NotConnect

3

66


Reserved

Forfutureuse

3

67


VccTx1

+3.3VPowerSupplytransmitter

2

68


Vcc2

+3.3VPowerSupply

2

70


GND

Ground

1

71

CML-I

Tx7p

TransmitterNon-InvertedDataInput


72

CML-I

Tx7n

TransmitterInvertedDataInput


73


GND

Ground

1

74

CML-I

Tx5p

TransmitterNon-InvertedDataInput


75

CML-I

Tx5n

TransmitterInvertedDataInput


76


GND

Ground

1


Notes:

1.QSFP-DD uses common ground (GND) for all signals and supply (power). All the common within the QSFP-DD module and all module voltages are referenced to this potential unless otherwise noted. Connected theses directly to the host board signal common ground plane.

2.VccRx, VccRx1, Vcc1, Vcc2, VccTx, and VccTx1 shall be applied concurrently. Requirements defined for the host side of the Host Card Edge Connector are listed in Table 4. VccRx, VccRx1, Vcc1, Vcc2, VccTx, and VccTx1 may be internally connected within the module in any combination. The connector Vcc pins are each rated for a maximum current of 1000mA.

3.All Vendor Specific, Reserved and No Connect pins may be terminated with 50 ohms to ground on the host. Pad 65 (No Connect) shall be left unconnected within the module. Vendor Specific and Reserved pads shall have an impedance to GND that is greater than 10 kOhms and less than 100pF.


Digital Diagnostic Memory Map

Digital Diagnostic Memory Map of 200Gb/s QSFP-DD SR8 100m Transceiver

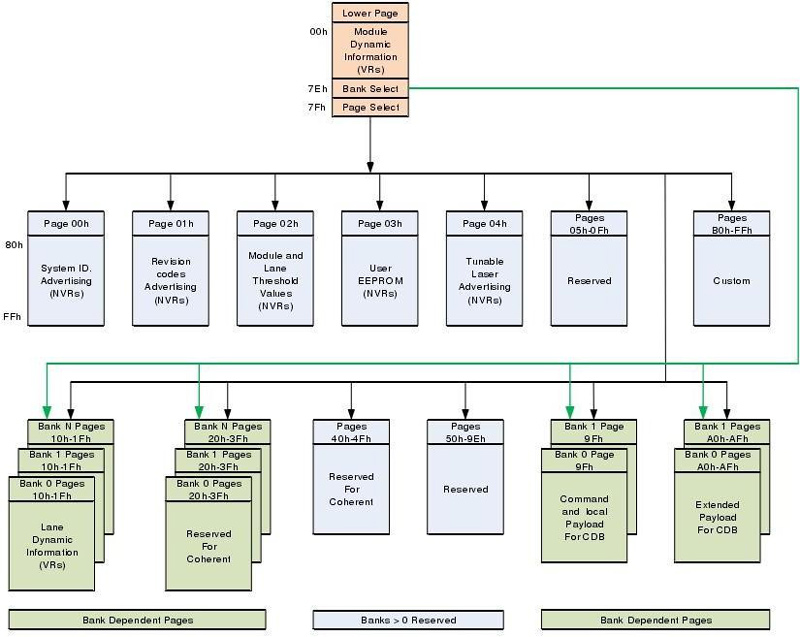

Figure 3 Digital Diagnostic Memory Map


Host Board Power Supply Filtering

Any voltage drop across a filter network on the host is counted against the host DC set point accuracy specification. Inductors with DC Resistance of less than 0.1 Ohm should be used in order to maintain the required voltage at the Host Edge Card Connector. Figure is the suggested transceiver/host interface.

Host Board Power Supply Filtering of 200Gb/s QSFP-DD SR8 100m Transceiver

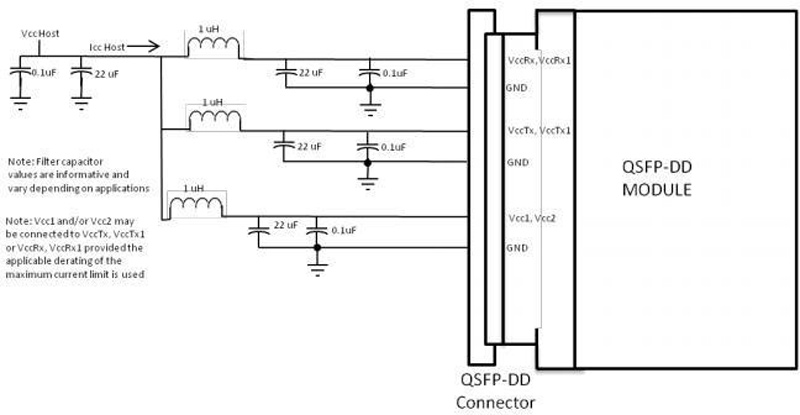

Figure 4 Recommended Host Board Power Supply Filtering

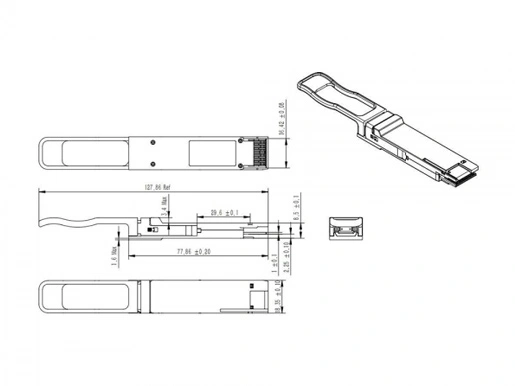

Outline Drawing (mm)

Outline Drawing (mm) of 200Gb/s QSFP-DD SR8 100m Transceiver

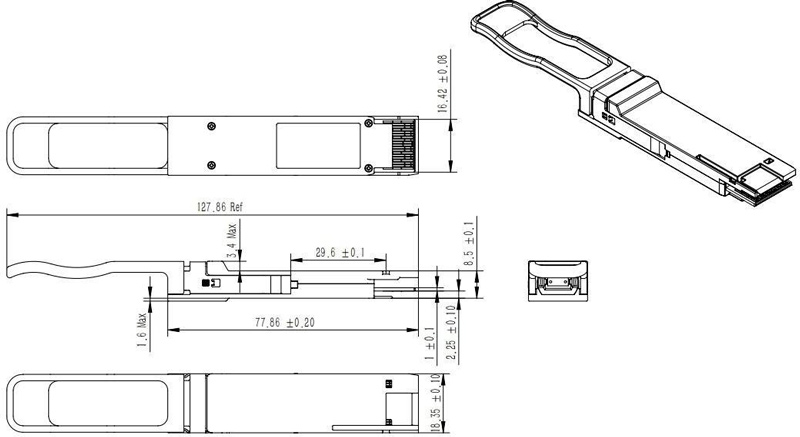

Figure 5 Package Outline


MPO Pinout Diagram and Deion

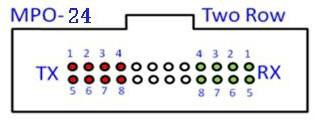

Figure 6 MPO Pinout Diagram and Deion


Host PCB layout recommendation

Host PCB layout recommendation of 200Gb/s QSFP-DD SR8 100m Transceiver

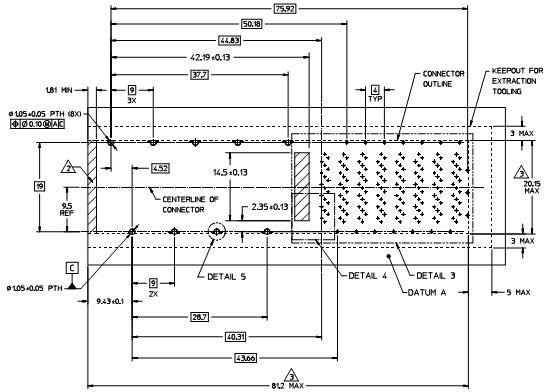

Figure 7 PCB Layout Recommendation

Applications

● 200GBASE-SR8 Ethernet

● 2×100GBASE-SR4 Ethernet

● Switch & Router Connections

● Data Centers
