200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4

LA-OT-200G-LR4
This product is a 200Gb/s transceiver module designed for 10km optical communication applications. The design is compliant to IEEE802.3bs 200GBASE-LR4 standard.
Overview
Specifications
Connectivity Solutions
Models
Resources

This product is a 200Gb/s transceiver module designed for 10km optical communication applications. The design is compliant to IEEE802.3bs 200GBASE-LR4 standard. For 200GAUI-8 Electrical interface, the module converts 8 input channels(ch) of 25Gb/s electrical data to 4 channels of LWDM optical signals, and multiplexes them into a single channel for 200Gb/s (PAM4) optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 200Gb/s(PAM4) input into 4 LWDM channels of signals, and converts them to 8 channels output electrical data. For 200GAUI-4 Electrical interface, the module converts 4 input channels(ch) of 50Gb/s electrical data to 4 channels of LWDM optical signals, and multiplexes them into a single channel for 200Gb/s (PAM4) optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 200Gb/s(PAM4) input into 4 LWDM channels of signals, and converts them to 4 channels output electrical data. The central wavelengths of the 4 LWDM channels. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 10km fiber transmission. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


Features

● IEEE802.3bs compliant

● QSFP-DD MSA compliant

● 4 LWDM lanes MUX/DEMUX design

● Supports 212.5Gb/s aggregate bit rate

● Up to 10km transmission on single mode fiber (SMF) with FEC

● Operating case temperature: 0 to 70oC

● 200GAUI-8 and 200GAUI-4 electrical interface

● Maximum power consumption 10.8W

● LC duplex connector

● RoHS compliant

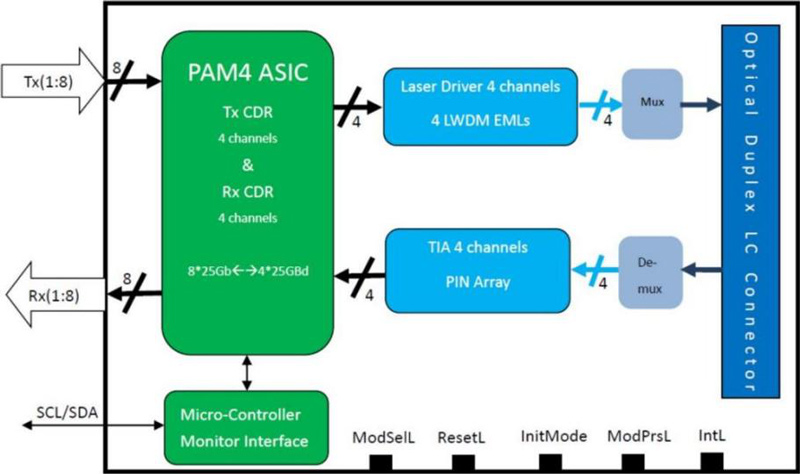

Transceiver Block Diagram


For 200GAUI-8

Transceiver Block Diagram of 200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4




For 200GAUI-4

Transceiver Block Diagram of 200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4

Figure 1. Transceiver Block Diagram

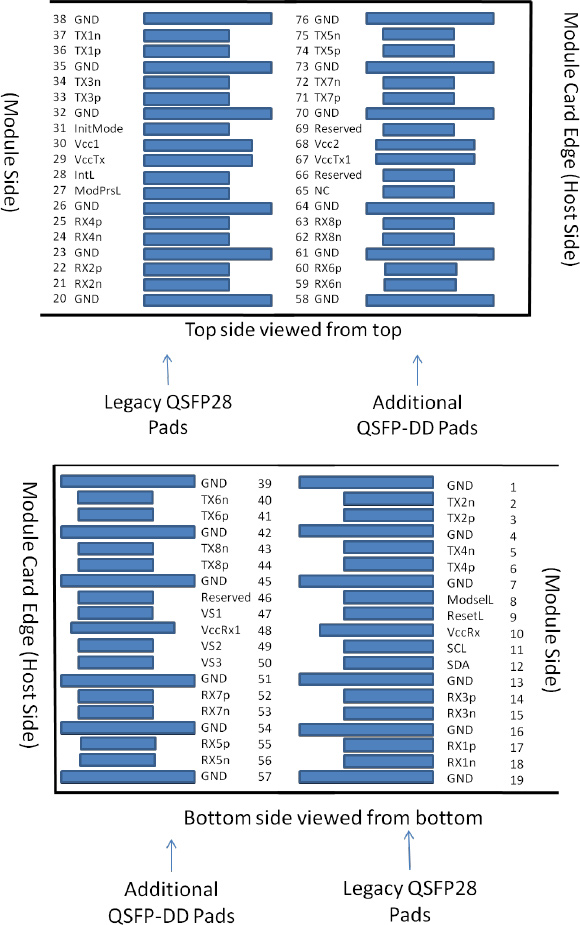

Pin Assignment and Deion

Pin Assignment and Deion of 200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4

Figure 2. MSA compliant Connector


Pin Definition


Pin

Logic

Symbol

Deion

Plug Sequence

Notes

1


GND

Ground

1B

1

2

CML-I

Tx2n

Transmitter Inverted Data Input

3B


3

CML-I

Tx2p

Transmitter Non-Inverted Data Input

3B


4


GND

Ground

1B

1

5

CML-I

Tx4n

Transmitter Inverted Data Input

3B


6

CML-I

Tx4p

Transmitter Non-Inverted Data Input

3B


7


GND

Ground

1B

1

8

LVTTL-I

ModSelL

Module Select

3B


9

LVTTL-I

ResetL

Module Reset

3B


10


VccRx

+3.3V Power Supply Receiver

2B

2

11

LVCMOS-

I/O

SCL

2-wire serial interface clock

3B


12

LVCMOS-

I/O

SDA

2-wire serial interface data

3B


13


GND

Ground

1B

1

14

CML-O

Rx3p

Receiver Non-Inverted Data Output

3B


15

CML-O

Rx3n

Receiver Inverted Data Output

3B


16

GND

Ground

1B


1

17

CML-O

Rx1p

Receiver Non-Inverted Data Output

3B


18

CML-O

Rx1n

Receiver Inverted Data Output

3B


19


GND

Ground

1B

1

20


GND

Ground

1B

1

21

CML-O

Rx2n

Receiver Inverted Data Output

3B


22

CML-O

Rx2p

Receiver Non-Inverted Data Output

3B


23


GND

Ground

1B

1

24

CML-O

Rx4n

Receiver Inverted Data Output

3B


25

CML-O

Rx4p

Receiver Non-Inverted Data Output

3B


26


GND

Ground

1B

1

27

LVTTL-O

ModPrsL

Module Present

3B


28

LVTTL-O

IntL

Interrupt

3B


29


VccTx

+3.3V Power supply transmitter

2B

2

30


Vcc1

+3.3V Power supply

2B

2

31

LVTTL-I

InitMode

Initialization mode; In legacy QSFP applications, the InitMode pad is

called LPMODE

3B


32


GND

Ground

1B

1

33

CML-I

Tx3p

Transmitter Non-Inverted Data Input

3B


34

CML-I

Tx3n

Transmitter Inverted Data Input

3B


35


GND

Ground

1B

1

36

CML-I

Tx1p

Transmitter Non-Inverted Data Input

3B


37

CML-I

Tx1n

Transmitter Inverted Data Input

3B


38


GND

Ground

1B

1

39


GND

Ground

1A

1

40

CML-I

Tx6n

Transmitter Inverted Data Input

3A


41

CML-I

Tx6p

Transmitter Non-Inverted Data Input

3A


42


GND

Ground

1A

1

43

CML-I

Tx8n

Transmitter Inverted Data Input

3A


44

CML-I

Tx8p

Transmitter Non-Inverted Data Input

3A


45


GND

Ground

1A

1

46


Reserved

For future use

3A

3

47


VS1

Module Vendor Specific 1

3A

3

48


VccRx1

3.3V Power Supply

2A

2

49


VS2

Module Vendor Specific 2

3A

3

50


VS3

Module Vendor Specific 3

3A

3

51


GND

Ground

1A

1

52

CML-O

Rx7p

Receiver Non-Inverted Data Output

3A


53

CML-O

Rx7n

Receiver Inverted Data Output

3A


54


GND

Ground

1A

1

55

CML-O

Rx5p

Receiver Non-Inverted Data Output

3A


56

CML-O

Rx5n

Receiver Inverted Data Output

3A


57


GND

Ground

1A

1

58


GND

Ground

1A

1

59

CML-O

Rx6n

Receiver Inverted Data Output

3A


60

CML-O

Rx6p

Receiver Non-Inverted Data Output

3A


61


GND

Ground

1A

1

62

CML-O

Rx8n

Receiver Inverted Data Output

3A


63

CML-O

Rx8p

Receiver Non-Inverted Data Output

3A


64


GND

Ground

1A

1

65


NC

No Connect

3A

3

66


Reserved

For future use

3A

3

67


VccTx1

3.3V Power Supply

2A

2

68


Vcc2

3.3V Power Supply

2A

2

69


Reserved

For Future Use

3A

3

70


GND

Ground

1A

1

71

CML-I

Tx7p

Transmitter Non-Inverted Data Input

3A


72

CML-I

Tx7n

Transmitter Inverted Data Input

3A


73


GND

Ground

1A

1

74

CML-I

Tx5p

Transmitter Non-Inverted Data Input

3A


75

CML-I

Tx5n

Transmitter Inverted Data Input

3A


76


GND

Ground

1A

1



Notes:

1. GND is the symbol for signal and supply (power) common for QSFP-DD modules. All are common within the QSFP-DD module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane.

2. VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown in Figure 3 below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP-DD transceiver module in any combination. The connector pins are each rated for a maximum current of 1000mA.

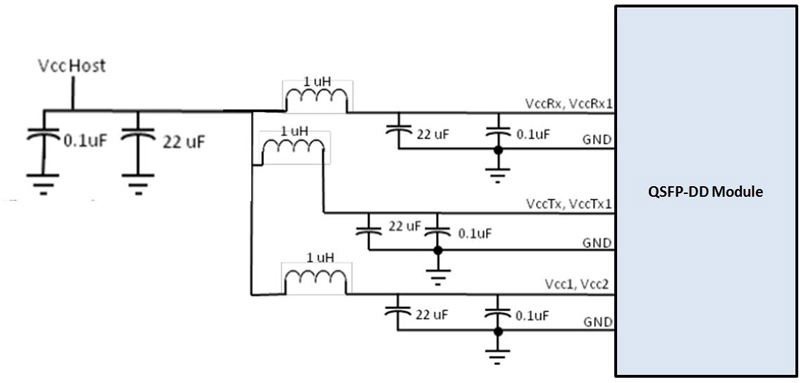

Recommended Power Supply Filter

Recommended Power Supply Filter of 200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4

Figure 3. Recommended Power Supply Filter


Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Units

Notes

Storage Temperature

TS

-40

85

degC


Operating Case Temperature

TOP

0

70

degC


Power Supply Voltage

VCC

-0.5

3.6

V


Relative Humidity

(non-condensation)

RH

0

85

%


Damage Threshold, each Lane

THd

3.5


dBm



Recommended Operating Conditions and Power Supply Requirements


Parameter

Symbol

Min

Typical

Max

Units

Notes

Operating Case

Temperature

TOP

0


70

degC


Power Supply

Voltage

VCC

3.135

3.3

3.465

V


Data Rate,

each Lane



26.5625


GBd



53.125


Gb/s


Data Rate Accuracy


-100


100

ppm


Pre-FEC Bit Error Ratio




2.4x10-4



Post-FEC Bit Error Ratio




1x10-12


1

Control Input Voltage High


2


Vcc

V


Control Input Voltage Low


0


0.8

V


Link Distance with G.652

D

0.002


10

km

2



Notes:

1. FEC provided by host system.

2. FEC required on host system to support maximum distance.


Electrical Characteristics

The following electrical acteristics are defined over the Recommended Operating Environment unless otherwise specified.


200GAUI-8 Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Units

Notes

Power Consumption




10.8

W


Supply Current

Icc



3258

mA


Transmitter (each Lane)

Signaling rate per lane(200GBASE-LR4)


26.5625±100ppm


GBd


Peak-to-peak differential output voltage




900

mv


AC common-mode

output voltage


17.5 mV RMS with respect

to signal ground

mV


Differential output return loss


Meets Equation (120D-2) constraints



Reference impedance for output return loss


100

Ω


Common to differential

mode conversion


Zin

Meets Equation (83E–3) constraints



Differential termination mismatch


Less than 10%



Transition time


Greater than or equal to 12 ps



Eye width


0.57

UI


Eye height


228

mV


Crosstalk source


Asynonous crosstalk source using Pattern 5, Pattern 3, or valid 200GBASE-R signal



Vertical eye closure




5.5

dB


Receiver (each Lane)

Single-ended Output Voltage



-0.4



3.3


V

Referred to signal

common

Differential pk-pk input


900



mV


voltage tolerance



Equati





Differential input return

on

loss

(83E–


5)



Equati





Differential to common-

on

mode input returnloss

(83E–


6)

Termination Mismatch at




10

%


1MHz

Module stressed input





test

See 83E.3.4.1

DC common mode







voltage

-350

2850

mv

Eye width


0.46

UI


Eye height


95

mV



200GAUI-4 Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Units

Notes

Power Consumption




10.8

W


Supply Current

Icc



3258

mA


Transmitter (each Lane)

Signaling rate per

lane(200GBASE-LR4)


26.5625±100ppm


GBd


Peak-to-peak differential

output voltage




900

mv


AC common-mode

output voltage




17.5

mV


Differential output return

loss


Equation (83E-2)



Common to differential

mode conversion


Zin

Equation (83E–3)



Differential termination

mismatch




10

%


Transition time(20% to

80%)


9.5



ps


DC common mode

voltage


-350


2850

mV


Receiver (each Lane)

Single-ended Output Voltage



-0.4



3.3


V

Referred to signal

common

Differential pk-pk input

voltage tolerance


900



mV



Differential input return loss


Equati on (83E–

5)





Differential to common- mode input returnloss


Equati on

(83E–






Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Units

Notes


Wavelength Assignment

L0

1294.53

1295.56

1296.59

nm


L1

1299.02

1300.05

1301.09

nm


L2

1303.54

1304.58

1305.63

nm


L3

1308.09

1309.14

1310.19

nm


Transmitter

Data Rate, each Lane


26.5625 ± 100 ppm

GBd


Modulation Format


PAM4



Side-mode Suppression Ratio

SMSR

30



dB

Modulated

Total Average Launch Power

PT



11.3

dBm


Average Launch Power, each

Lane

PAVG

-3.4


5.3

dBm

1

Outer

Optical

Modulation

Amplitude

(OMAouter),

 each Lane


POMA


-0.4



5.1


dBm


2


Launch Power

in OMAouter

 minus TDECQ,

each Lane


-1.8



dB

For ER

≥4.5dB

-1.7



dB

For ER <4.5dB

Transmitter and

Dispersion Eye

Clouser for PAM4,

each Lane

TDECQ



3.4

dB


Extinction Ratio

ER

3.5



dB


Difference in

Launch Power

between any

Two Lanes

(OMAouter)





4


dB


RIN16.5OMA

RIN



-132

dB/Hz


Optical Return

Loss Tolerance

TOL



15.1

dB


Transmitter Reflectance

TR



-26

dB


Average Launch

Power of OFF

Transmitter, each Lane

Poff



-30

dBm


Receiver

Data Rate, each Lane


26.5625 ± 100 ppm

GBd




Modulation Format


PAM4





Damage Threshold,

each Lane

THd

6.3



dBm

3

Average Receive Power,

each Lane


-9.7


5.3

dBm

4

Receive Power (OMAouter),

each Lane




5.1

dBm


Difference in

Receiver Power

between any Two Lanes

(OMAouter)





4.2


dB


Receiver Sensitivity

(OMAouter), each Lane

SEN



-7.7

dBm

For BER

of 2.4E-4

Stressed Receiver

Sensitivity

(OMAouter), each Lane

SRS




-5.2

dBm

5

Receiver Reflectance

RR



-26

dB


LOS Assert

LOSA


-25.7



dBm


LOS De-assert

LOSD




-11.7

dBm


LOS Hysteresis

LOSH

0.5



dB


Stressed Conditions for Stress Receiver Sensitivity (Note 6)

Stressed Eye Closure for PAM4 (SECQ), Lane under Test




3.4

dB


OMAouter of each Aggressor Lane



-1


dBm



Notes:

1. Average launch power, each lane (min) is informative and not the principal indicator of signal strength. A transmitter with launch power below this value cannot be compliant; however, a value above this does not ensure compliance.

2. Even if the TDECQ < 1.4 dB for an extinction ratio of ≥ 4.5 dB or TDECQ < 1.3 dB for an extinction ratio of < 4.5 dB, the OMAouter (min) must exceed the minimum value specified here.

The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level.

3. Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance.

4. Measured with conformance test signal for BER = 2.4x10-4.

5. These test conditions are for measuring stressed receiver sensitivity. They are not acteristics of the receiver.


Digital Diagnostic Functions

The following digital diagnostic acteristics are defined over the normal operating conditions unless otherwise specified.


Parameter

Symbol

Min

Max

Units

Notes

Temperature monitors

absolute error


DMI_Temp


-3


3


degC

Over operating temperature range

Supply voltage monitor

absolute error

DMI _VCC

-0.1

0.1

V

Over full operating range

Channel RX power monitor

absolute error


DMI_RX_Ch


-3


3


dB


Channel Bias current monitor

DMI_Ibias_Ch

-10%

10%

mA


Channel TX power

monitor absolute error

DMI_TX_Ch

-3

3

dB



Outline Drawing (mm)

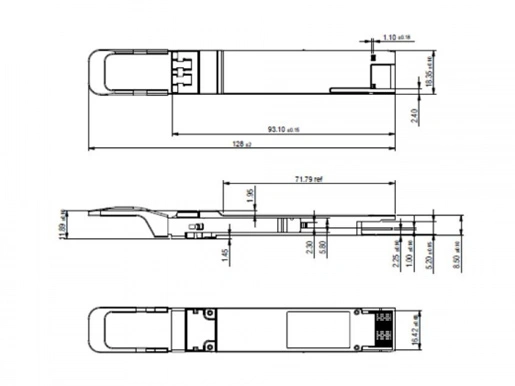

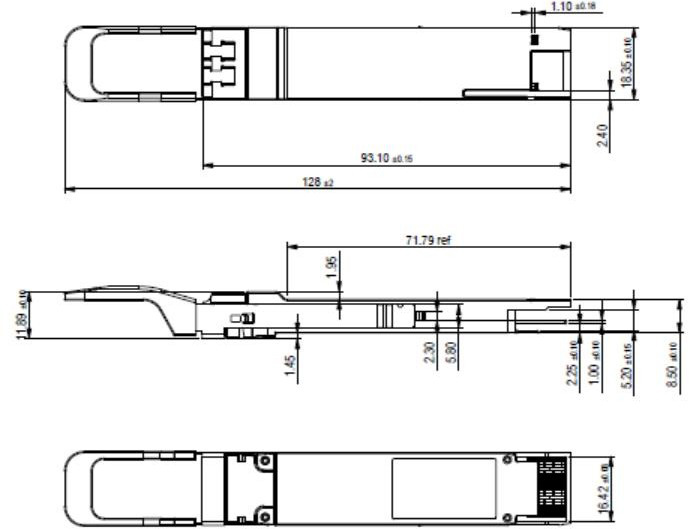

Outline Drawing (mm) of 200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4


Applications

● Data Center Interconnect

● 200G Ethernet

● Enterprise networking


Date Version Description Download
2025-03-17 Datasheet_200G QSFP-DD LR4 1310nm 10km_LA-OT-200G-LR4
How Can We Help You Today
Lastest News & Blog about Lanbras
OFC 2025 - Explore the Thriving and Ever
The 2025 Optical Fiber Communications Conference and Exhibition (OFC) is back to solidify its status as the premier global event for optical networking and communications. With over 13,500 expected re...
Mar 10, 2025
Learn More
MWC25 Barcelona - Where Technology and Commerce Converge
MWC Barcelona 2025 is the one time of year where everyone who’s anyone, in the world of connectivity, comes together under one roof. Tens of thousands of senior leaders from top global companies, int...
Feb 10, 2025
Learn More
INTERSEC DUBAI 2025
Intersec Dubai - The world’s leading trade fair for security, surveillance and fire protection.INTERSEC DUBAI 2025JAN 14–16 2025Dubai World Trade CenterIntersec will mark its 26th edition from 14–1...
Jan 05, 2025
Learn More
Follow us and the future of network.

Subscribe now, you can get over 100 valuable resources and white papers.

Follow us also can get the latest products and industry information in our members emails. Learn Details>>>

Lanao Communication Technology Limited.
Products and Solutions Inquiries
