16xGE RJ45, 8xGE Combo, 4x10G SFP+ Support DI/DO and RS485, Port 1-2 Support BT 90w

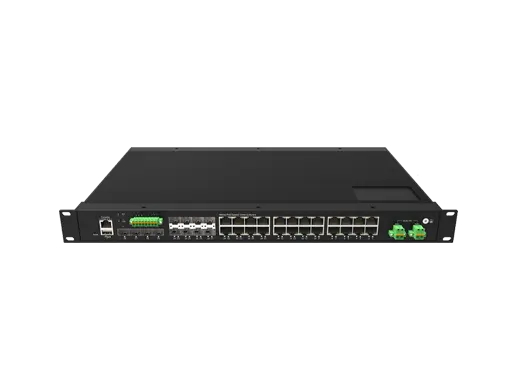

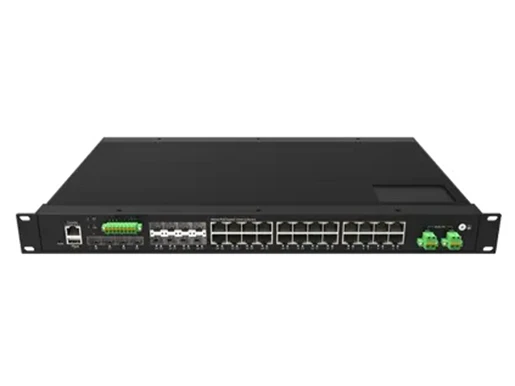

LA-IS8M3-10G04C0816PB-UR-L
LA-IS8M3-10G04C0816PB-UR-L is highly reliable Layer 3 managed industrial PoE switch with 16-port 10/100/1000Base-T PoE, 8-port 1000Base Combo and 4-port 1G/2.5G/10GBase-X SFP+.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-IS8M3-10G04C0816PB-UR-L is highly reliable Layer 3 managed industrial PoE switch with 16-port 10/100/1000Base-T PoE, 8-port 1000Base Combo and 4-port 1G/2.5G/10GBase-X SFP+. They comply with IEEE802.3af PoE, IEEE802.3at PoE+, IEEE802.3bt PoE++ standard protocol, the Max power output consumption per port can reach 90W (1-2 ports). With full gigabit downlink and 10G uplink capability, they can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. They support DI/DO/RS485/Modbus data, G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing & dynamic routing features, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.

It is also a high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including wide range voltage input 44-57VDC, redundant power design with DC/DC, robust IP40 fan-less housing with rack-mount installation, wide operation temperature from -40°C to 75 °C as well as high-level EMI/EMC capability. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

Features
● 16*10/100/1000Base-T RJ45 PoE, 8*1G Combo RJ45/SFP, 4*1G/2.5/10GGBase-X SFP+
● DC/DC redundant power 44-57V input with polarity reverse/over-voltage/over-current protection
● Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
● Support USB one key configuration and upgrading
● Support DI/DO/RS485/Modbus data
● Layer 3 features: Supports static and dynamic routing, RIP, OSPF, BGP4, ECMP, VRRP
● Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
● Management and maintenance: IPv4 and IPv6 management, PoE management; Support Web, SNM, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
● Support G.8032 ERPS protocol, recovery time ≤20ms
● Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
● IP40 fan-less and rack-mount hardware design
● Operation temperature: -40 ℃ ~+ 75 ℃

Fixed Port16x10/100/1000Base-T RJ45 PoE, 8xCOMBO SFP/RJ45, 4x1G/2.5G/10G SFP+
Management Port1xRJ45 Console port (115200,8,N,1)
1xUSB 2.0 for configuration and firmware
Data & Alarm Channel(optional)1 channel RS485
1 channel DI(digital input)
1 channel DO(digital output)
StandardIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN
ITU-T G.8032 ERPS
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ad LACP
IEEE802.3af PoE
IEEE802.3at PoE+
LED Indicators
P (Power indicator)Off: device is power off or failedOn: device power on is normal
S (System status indicator)Blinking: device initializationOn: device on normal operation
USB (USB status indicator)Off: USB flash drive not or not detected by device
On: USB flash drive is detected by device
Blinking: device is reading and writing the data from USB flash drive
ALM (Fault status indicator) RedOff: Device on normal working stateOn: Fault alarm
1-16Off: ports link down
(Copper ports indicators) GreenOn: ports link up

Blinking: data on TX/RX
1-16 (PoE status indicators) YellowOff: PoE not working
On: PoE working
17-24 (Copper ports indicators) GreenOff: ports link down
On: ports link up
Blinking: data on TX/RX
17-24Off: PoE not working
(PoE status indicators) YellowOn: PoE working
17-24Off: ports link down
(Fiber ports indicators) GreenOn: ports link up

Blinking: data on TX/RX
25-28 (Fiber ports indicators) GreenOff: ports link down
On: ports link up
Blinking: data on TX/RX
Power Parameter
Input VoltageDC 47~57V
AC 100-240V
redundant power input
Input Current9A DC input Max
Total Power ConsumptionFull loading without PoE≤36W
PoE power budget ≤ 370W
ConnectorRemovable 2-pin terminal block
Reverse Polarity ProtectionSupport
Over-Voltage ProtectionSupport
Over-Current ProtectionSupport
Layer 2 Functions
Port AggregationSupport GE port aggregation
Support 2.5GE aggregation
Support 10GE aggregation
Support static aggregation
Support LACP dynamic aggregation
Up to 64 aggregation groups and up to 8 ports per group
Port FeaturesSupport IEEE802.3x flow control
Support interface counters
Support port isolation
Port mirroring ( One-to-One, Many-to-One)
Support loop detection(Port-based; VLAN-based)
Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast)
Mac-AddressSupport static Mac-address management
Table ManagementSupport dynamic Mac-address Management

Support filtering Mac-address

Support MAC limit based on port and VLAN

Support MAC flapping based on port and VLAN
VLANSupport access mode
Support trunk mode
Support hybrid mode
VLAN ClassificationMac Based VLAN
IP Based VLAN
Protocol Based VLAN
GVRPNormal mode
Fixed mode
Forbidden mode
QinQPort-based QinQ
VLAN-based QinQ (VLAN-stacking; VLAN-mapping)
Flow-based QinQ
LLDPLLDP (Link Layer Discovery Protocol)
Ring Network ProtocolSupport IEEE802.1D-STP
Support IEEE802.1W-RSTP
Support IEEE802.1S-MSTP
Support G.8032 ERPS protocol, single ring, sub Ring and major ring
Recovery time ≤20ms
L2 Multicast
IGMP SnoopingSupport IGMP snooping
Group AddressSupport group address
Security Functions
ACLIP Standard ACL
MAC extend ACL
IP extend ACL
IPv6 ACL
QoSSupport QoS Class, remarking
Support SP, WRR queue scheduling
Ingress port-based rate-limit
Egress port-based rate-limit
Support policy-based QoS
802.1xPort access control
Mac-address access control
RADIUS server
Port-SecurityPort-security
IP Source GuardIP Port/MAC binding
ARP-checkSupport ARP-check and ARP packet filtering for illegal users
Access ControlSupport Telnet/SSH/HTTP/HTTPS user access control
Management & Maintenance functions
User ManagementSupport password protection
Support user authorization management
SNMPSupporting SNMP V1/V2C/V3 version
Web ManagementWeb Management
Support HTTP V1.1
Support HTTPS
CLI ManagementConsole/Telnet command line management
RMONSupport RMON(Remote Monitoring) alarm
Firmware UpgradeFirmware upgrade
Fault DetectionPing/Traceroute
Dying gasp
Support optical transceiver DDM function
Cable DetectionSupport copper port cable detection
PoE managementSupport 802.3af/802.3at
Support PD watchdog
Support PoE priority management
Support Max PoE power configuration for each port
Support alarm waterline configuration
Support reserved power configuration
NTPNetwork Time Protocol
Syslog/DebugSyslog/Debug
Syslog send to three servers
Configuration Import/ExportSupport FTP/TFTP remote import/export
Support USB import/export
Dual Partition ManagementSupport dual partition switching
Application Protocol Functions
DHCP SnoopingDHCP snooping trust port
Support remote-id/circuit-id configuration
DHCP option-82
DHCP ClientSupport DHCP client
Telnet ServerSupport telnet server
Telnet ClientSupport telnet client
SSH ServerSupport SSH server
TACACSSupport TACACS(the terminal access controller accesses the control system)
SflowSupport network traffic analysis
TFTPSupport TFTP Client
Layer 3 Functions
ARPARP table aging
DHCP Server
IPv4 / IPv6Static routing
ECMPSupport ECMP (Equal-cost multi-path routing)
Support the configuration of ECMP Max next-hop
Support capacity balanced configuration
Route policyIPv4 prefix-list
VRRPVirtual Router Redundancy Protocol
Routing Protocol Specification
RIPRIPv1/v2
OSPFv2OSPFv2
BGP4BGP4
BGP Support Routing Recursive ECMP
Support to view the number of neighbors and up/down state
IS-ISIS-ISv4
Routing entry13K
Switching features
Switching Capacity128Gbps
Packet Forwarding Rate190.4Mpps
MAC Address Table16K
VLAN4K
Buffer12M bit
Forwarding Delay<5us
Jumbo FrameSupport 10Kbytes
MDX/MIDXSupport
WatchdogSupport
Mechanical Structure
Case ProtectionIP40
Installation MethodRack mountable
Dimension(W*D*H)mm440*44*280mm
Operating environment
Operating Temperature-40℃~+ 75℃
Storage/Transportation Temperature-40℃~+ 85℃
Relative HumidityOperation humidity: 10%-90%RH
Storage humidity: 5%-95%RH
Industrial Standard
EMSSurge protection of power: IEC 61000-4-5 DC:6KV/6KV (8/20us)
Surge protection of Ethernet ports: IEC 61000-4-5  6KV/2KV(10/700us)
RS: IEC 61000-4-3 80 MHz-1 GHz: 10 V/m
EFT: IEC 61000-4-4 power 4K, signal 2K
CS: IEC 61000-4-6 10V
ESD: IEC 61000-4-2  Contact: 8K; Air: 15K
EMIFCC Part 15B Class A
ShockIEC 60068-2-27
Free FallIEC 60068-2-32
VibrationIEC 60068-2-6
CertificationCE/RoHS/FCC
MTBF>200,000 hours


Dimension

Dimension of 16xGE RJ45, 8xGE Combo, 4x10G SFP+ Support DI/DO and RS485, Port 1-2 Support BT 90w

Ordering Information
LA-IS8M3-10G04C0816PB-LL3 Managed industrial PoE switch 16xGE RJ45, 8xGE Combo, 4x10G SFP+ Port 1-2 Support BT 90w Redundant dual power supply DC44-57V input
LA-IS8M3-10G04C0816PB-UR-LL3 Managed industrial PoE switch 16xGE RJ45, 8xGE Combo, 4x10G SFP+ Port 1-2 Support BT 90w Redundant dual power supply DC44-57V input Support DI/DO and RS485
