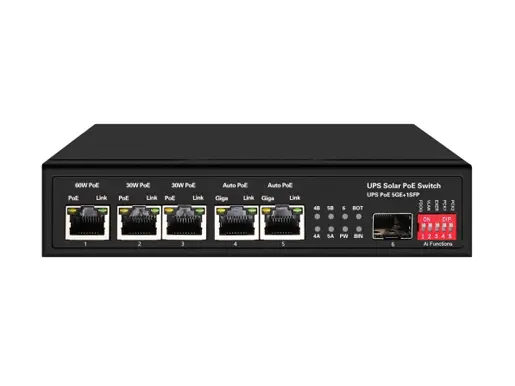

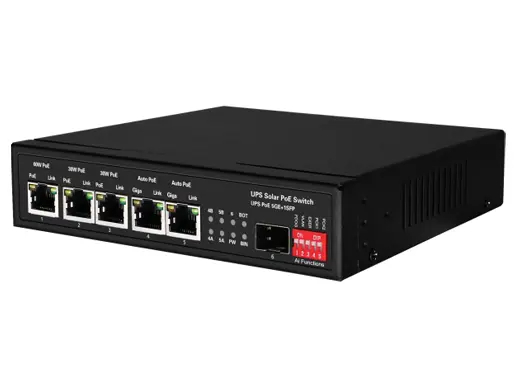

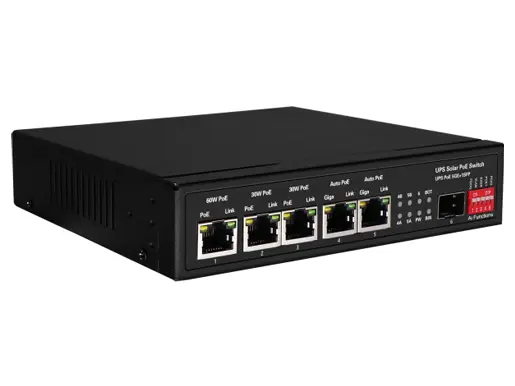

15A UPS Solar PoE Ethernet Switch 1GE 60W PoE + 2GE 30W PoE + 2GE Auto PoE + 1GE SFP

LA-SWAI-G0105PB-SE
15A UPS Solar PoE Ethernet Switch1GE 60W PoE + 2GE 30W PoE + 2GE Auto PoE + 1GE SFP
Overview
Specifications
Connectivity Solutions
Models
Resources

Having the features that power generation by solar energy, intelligent PoE power supply and control on auto ging and disging, 5+1 high-power solar energy ging switch can more effectively solve the network application and power supply demand in complicated environments such as in remote mountainous areas, scenic spots, network electricity off shore and outdoor construction.

Part No.LA-SWAI-G0105PB-SE
Deion5+1 High-power Solar Energy PoE Switch 15A
Port1*10/100/1000Base-TX 60W PoE  port (Data/Power)
2*10/100/1000Base-TX 30W PoE port (Data/power)
2*10/100/1000Base-TX Auto PoE port (Data/power)
1*1000M SFP
PoE Port1port: Ai version Hi-PoE, port output power MAX 60W
2-3port: IEEE 802.3af/at, port output power MAX 30W
4-5port: Auto AI version PoE port (supply power for 48V/24V devices), port output power MAX 25W
1-5 port support PoE (first port output HiPoE_60W)
FunctionQ_Lead-acid battery mode + L_Lithium battery mode
Network ProtocolIEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3af/at/PoE++
Ai PSE
PoE StandardIEEE802.3af/at/PoE++
Port Specification10/100/1000BaseT(X)Auto
Transmission ModeStore and Forward (full wire-speed)
Bandwidth12Gbps
Packet Forwarding8.64Mpps
MAC Address2K
Buffer2.5M
Transmission Distance10BASE-T: Cat3,4,5 UTP (≤250 meter)
100BASE-TX: Cat5 or later UTP (150 meter)
1000BASE-TX: Cat6 or later UTP (150 meter)
1000BASE-SX: 62.5μm/50μm MMF(2m~550m)
1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Max. Support Transmission Distance 120KM for Single Mode Optical Fiber
Transmission SpeedEthernet 10Mbps half-duplex, 20Mbps full duplex
Fast Ethernet 100Mbps half-duplex, 200Mbps full duplex
Gigabit Ethernet 2000Mbps full duplex

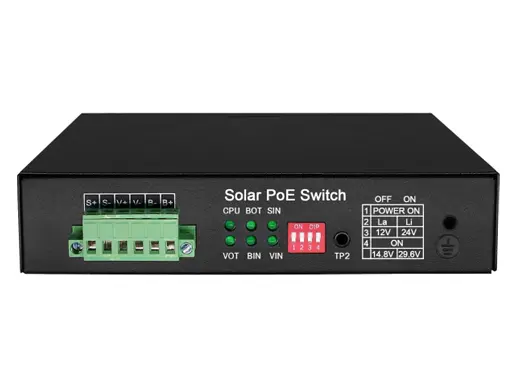

Power Pin48V power supply:12+36-; 24V power supply:45+78-
Power InputSupport 12V solar panel input(≤57V) or with 12V batteries
Support 24V solar panel input(≤57V) or with 24V batteries
12V battery DC input: DC 15-26V;24V battery DC input:26-32V
12V/24V solar panel input power MAX 800W
Charging FunctionIntegrated fully automatic ging
Integrated battery protection function
Automatic Battery Voltage Recognition
Integrated Lithium Battery Automatic Activation System
Integrated Low Volume Start-up Protection System
BatterySupporting 12V or 24V lead-acid batteries  MAX500AH, 15A
Supporting 12.6V or 25.2V lithium batteries   MAX500AH 50AH, 15A
Supporting 14.8V or 29.6V lithium batteries  MAX 500AH, 15A
LED IndicatorPW: Power LED; BIN: Battery ging indicator; BOT: Battery disging indicator;
6: (SFP LED); 4A-5A: Port 4-5 48V PoE ON light; 4B-5B: Port 4-5 24V PoE ON light
CPU: System operation LED; VOUT: PoE output VOL normal indicator;
SIN: Solar panel input indicator; VIN: DC input indicator
Operating Temp. and-20~+65°C; 10%~90% RH Non-condensation
Humidity
Storage Temp. and-40~+70°C; 5%~90% RH Non-condensation
Humidity
Product Size (L*W*H)160mm*142mm*35mm
Packing Size (L*W*H)300mm*175mm*100mm
N.W.0.72kg (not including Solar energy panel, battery or power adapter)
Packaging20pcs/ctn, 19.5kgs, carton dim. 53*43*41cm
InstallationRack-mount or wall mounting
Lightning Protection3KV 8/20us; IP30
CertificateCE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
WarrantyWhole device for 1 year (accessories not included)


Ordering Information
LA-SWAI-G0105PB-SE15A UPS Solar PoE Ethernet Switch, 1*10/100/1000Base-TX 60W PoE port (Data/Power), 2*10/100/1000Base-TX 30W PoE port (Data/power), 2*10/100/1000Base-TX Auto PoE port (Data/power), 1*1000M SFP
