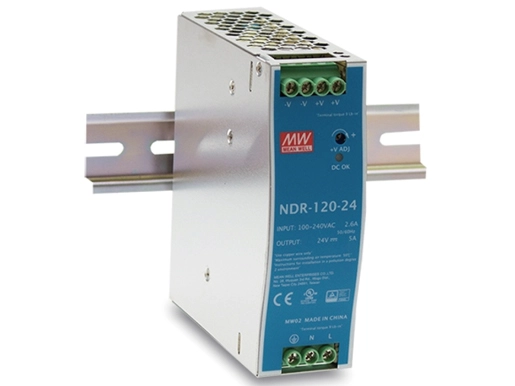

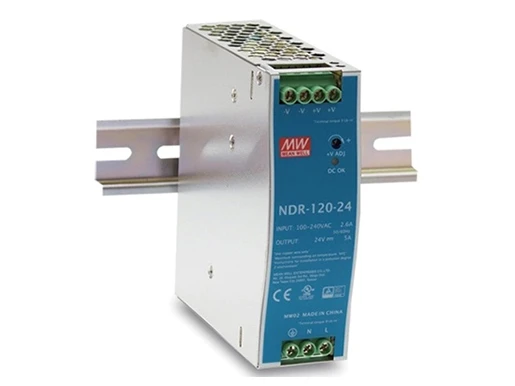

120W Single Output Industrial DIN RAIL

NDR- 120 series
NDR-120 is one economical slim 120w DIN rail power supply series, adapt to be installed on TS-35/7 .5 or TS-35/ 15 mounting rails.
Overview
Specifications
Connectivity Solutions
Models
Resources

Features

● Universal AC input / Full range

● protections: Short circuit / overload / over voltage / over temperature

● Cooling by free air convection

● Can be installed on DIN rail TS-35/7.5 or 15

● UL 508 (industrial control equipment) approved

● BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level .100% full load burn-in test

● 3 years warranty


Applications

● Industrial control system

● Semiconductor fabrication equipment

● Factory automation

● Electro-mechanical apparatus


NDR-120 is one economical slim 120w DIN rail power supply series, adapt to be installed on TS-35/7 .5 or TS-35/ 15 mounting rails . The body is designed 40mm in width, which allows space saving inside the  cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to  BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.


NDR-120 is designed with metal housing that enhances the unit's power dissipation. with working efficiency up to 89%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc .) make NDR-120 a very competitive power supply solution for industrial applications.

MODELNDR-120-12NDR-120-24NDR-120-48
OUTPUTDC VOLTAGE12V24V48V
RATED CURRENT10A5A2.5A
CURRENT RANGE0 ~ 10A0 ~ 5A0 ~ 2.5A
RATED POWER120W120W120W
RIPPLE & NOISE (max.) Note.2100mVp-p120mVp-p150mVp-p
VOLTAGE ADJ. RANGE12 ~ 14V24 ~ 28V48 ~ 55V
VOLTAGE TOLERANCE  Note.3±2.0%±1.0%±1.0%
LINE REGULATION±0.5%±0.5%±0.5%
LOAD REGULATION±1.0%±1.0%±1.0%
SETUP, RISE TIME1200ms, 60ms/230VAC         2500ms, 60ms/115VAC at full load
HOLDUP TIME (Typ.)16ms/230VAC          10ms/115VAC at full load
INPUTVOLTAGE RANGE           Note.690 ~ 264VAC          127 ~ 370VDC     [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)85.50%88%89%
AC CURRENT (Typ.)2.25A/115VAC          1.3A/230VAC
INRUSH CURRENT (Typ.)20A/115VAC        35A/230VAC
LEAKAGE CURRENT<1mA / 240VAC
PROTECTIONOVERLOAD105 ~ 130% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE14 ~ 17V29 ~ 33V56 ~ 65V
Protection type: Shutdown o/p voltage, re-power on to recover
OVER TEMPERATUREShutdown o/p voltage, re-power on to recover
ENVIRONMENTWORKING TEMP.-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/℃ (0 ~ 50℃)
VIBRATIONComponent:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &SAFETY STARDSUL508, TUVBSEN/EN62368-1, EACTPTC 004 approved;(meet  BSEN/EN60204-1)
EMCWITHST VOLTAGEI/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
(Note 4)ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSIONCompliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITYCompliance to BS EN/EN61000-4-2,3,4,5,6,8, 11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020
OTHERSMTBF2636.8K hrs min.      Telcordia SR-332 (Bellcore) ; 453.3K hrs min.      MIL-HDBK-217F (25℃)
DIMENSION40* 125.2* 113.5mm (W*H*D)
PACKING0.6Kg; 20pcs/13Kg/1. 16CUFT
NOTE1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Installation clearances: 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. please check the derating curve for more details.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
※ product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
