SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS (must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
Features
● Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
● Hot-pluggable SFP footprint
● Compact RJ-45 connector assembly
● RoHS compliant and lead-free
● Single +3.3V power supply
● 10 Gigabit Ethernet over Cat 6a cable
● Ambient Operating temperature: 0°C to +65°C
Cable Length
Standard | Cable | Reach | Host Port |
10Gbase-T | CAT6A | 30m | SFI |
5Gbase-T/2.5Gbase-t | CAT5E | 50m | 5GBase-R/2.5GBase-X |
1000base-T | CAT5E | 100m | 1000base-FX |
Pin | Symbol | Name/Description | Ref. |
1 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
2 | TFAULT | Transmitter Fault. Not supported. | |
3 | TDIS | Transmitter Disable. Laser output disabled on high or open. | 2 |
4 | MOD_DEF (2) | Module Definition 2. Data line for Serial ID. | 3 |
5 | MOD_DEF (1) | Module Definition 1. Clock line for Serial ID. | 3 |
6 | MOD_DEF (0) | Module Definition 0. Grounded within the module. | 3 |
7 | Rate Select | No connection required | |
8 | LOS | High indicates no linked. low indicates linked. | 4 |
9 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
10 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
11 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
12 | RD- | Receiver Inverted DATA out. AC Coupled | |
13 | RD+ | Receiver Non-inverted DATA out. AC Coupled | |
14 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
15 | VCCR | Receiver Power Supply | |
16 | VCCT | Transmitter Power Supply | |
17 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
18 | TD+ | Transmitter Non-Inverted DATA in. AC Coupled. | |
19 | TD- | Transmitter Inverted DATA in. AC Coupled. | |
20 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
SFP to Host Connector Pin Out
Notes:
1. Circuit ground is connected to chassis ground
2. PHY disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V
3. Should be pulled up with 4.7k - 10k Ohms on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF (0) pulls line low to indicate module is plugged in.
4. LVTTL compatible with a maximum voltage of 2.5V.
Figure 1. Diagram of host board connector block pin numbers and names
+3.3V Volt Electrical Power Interface
The SFP+-10GBASE-T has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.
+3.3 Volt Electrical Power Interface | ||||||
Parameter | Symbol | Min | Type | Max | unit | Notes/Conditions |
Supply Current | Is | 700 | 900 | mA | 3.0W max power over full range of voltage and temperature. See caution note below | |
Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
Maximum Voltage | Vmax | 4 | V | |||
Surge Current | Isurge | TBD | mA | Hot plug above steady state current. See caution note below |
Caution: Power consumption and surge current are higher than the specified values in the SFP MSA
Low-Speed Signals
MOD_DEF (1) (SCL) and MOD_DEF (2) (SDA), are open drain CMOS signals (see section VII, "Serial Communication Protocol"). Both MOD_DEF (1) and MOD_DEF (2) must be pulled up to host_Vcc
Low-Speed Signals, Electronic Characteristics | |||||
Parameter | Symbol | Min | Max | unit | Notes/Conditions |
SFP Output LOW | VOL | 0 | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
SFP Output HIGH | VOH | host_Vcc -0.5 | host_Vcc + 0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
SFP Input HIGH | VIH | 2 | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
High-Speed Electrical Interface
All high-speed signals are AC-coupled internally.
High-Speed Electrical Interface, Transmission Line-SFP | ||||||||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions | ||||||
Line Frequency | fL | 125 | MHz | 5-level encoding, per IEEE 802.3 | ||||||||
Tx Output Impedance | Zout,TX | 100 | Ohm | Differential, for all frequencies between 1MHz and 125MHz | ||||||||
Rx Input Impedance | Zin,RX | 100 | Ohm | Differential, for all frequencies between 1MHz and 125MHz | ||||||||
High-Speed Electrical Interface, Host-SFP | ||||||||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions | ||||||
Single ended data input swing | Vinsing | 250 | 1200 | mV | Single ended | |||||||
Single ended data output swing | Voutsing | 350 | 800 | mV | Single ended | |||||||
Rise/Fall Time | Tr, Tf | 175 | psec | 20%-80% | ||||||||
Tx Input Impedance | Zin | 50 | Ohm | Single ended | ||||||||
Rx Output Impedance | Zout | 50 | Ohm | Single ended |
General Specifications
General | ||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
Data Rate | BR | 1 | 10 | Gb/sec | IEEE 802.3 compatible. See Notes 1,2 below |
Notes:
1. Clock tolerance is +/- 50 ppm
EEPROM INFORMATION (A0)
Addr | Field Size (Bytes) | Name of Field | HEX | Description |
0 | 1 | Identifier | 03 | SFP |
1 | 1 | Ext. Identifier | 04 | MOD4 |
2 | 1 | Connector | 07 | LC |
3-10 | 8 | Transceiver | 10 00 00 00 00 00 00 00 | Transmitter Code |
11 | 1 | Encoding | 06 | 64B66B |
12 | 1 | BR, nominal | 67 | 1000M bps |
13 | 1 | Reserved | 00 | |
14 | 1 | Length (9um)-km | 00 | |
15 | 1 | Length (9um) | 00 | |
16 | 1 | Length (50um) | 08 | |
17 | 1 | Length (62.5um) | 02 | |
18 | 1 | Length (copper) | 00 | |
19 | 1 | Reserved | 00 | |
20-35 | 16 | Vendor name | 57 49 4E 54 4F 50 20 20 20 20 20 20 20 20 20 20 | |
36 | 1 | Reserved | 00 | |
37-39 | 3 | Vendor OUI | 00 00 00 | |
40-55 | 16 | Vendor PN | xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx | ASC II |
56-59 | 4 | Vendor rev | 31 2E 30 20 | V1.0 |
60-61 | 2 | Wavelength | 03 52 | 850nm |
62 | 1 | Reserved | 00 | |
63 | 1 | CC BASE | XX | Check sum of byte 0~62 |
64-65 | 2 | Options | 00 1A | LOS, TX_DISABLE, TX_FAULT |
66 | 1 | BR, max | 00 | |
67 | 1 | BR, min | 00 | |
68-83 | 16 | Vendor SN | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | Unspecified |
84-91 | 8 | Vendor date code | XX XX XX 20 | Year, Month, Day |
92-94 | 3 | Reserved | 00 | |
95 | 1 | CC_EXT | XX | Check sum of byte 64~94 |
96-255 | 160 | Vendor specific |

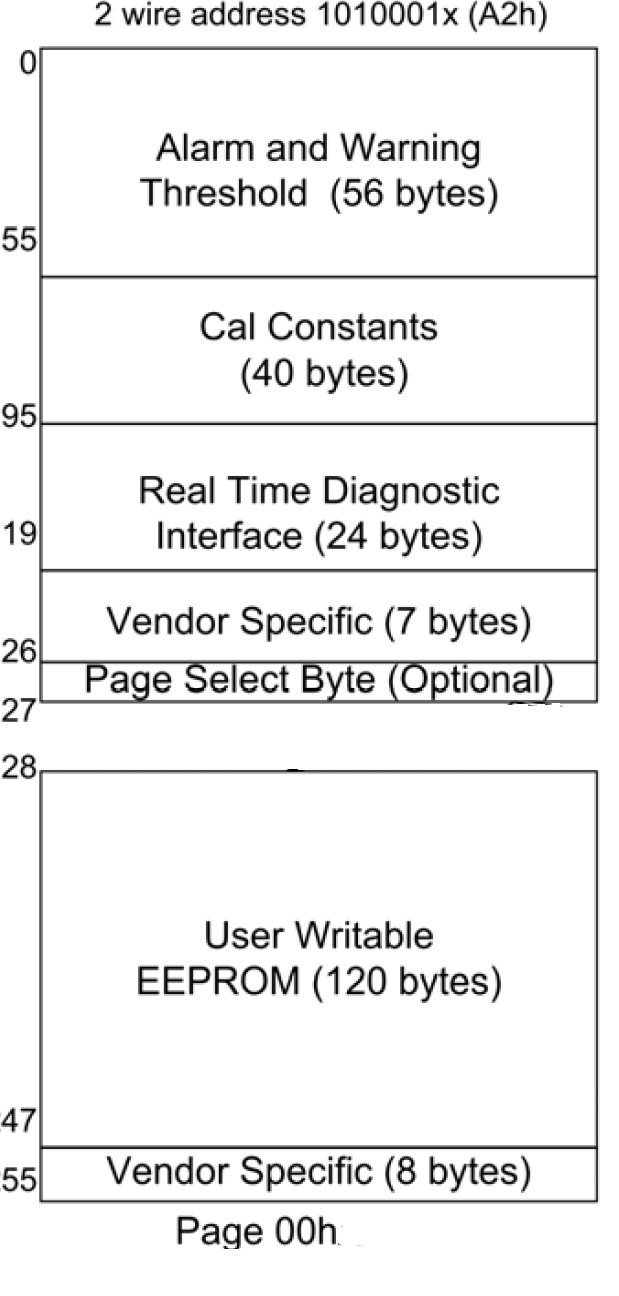

EEPROM INFORMATION (A2) Optional
Environmental Specifications
Automatic crossover detection is enabled. External crossover cable is not required
Environmental Specifications | ||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
Operating Temperature | Top | 0 | 65 | °C | Case temperature | |
Storage Temperature | Tsto | -40 | 85 | °C | Ambient temperature |
Serial Communication Protocol
Serial Bus Timing, Requirements | ||||||
Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
I 2C Clock Rate | 0 | 200,000 | Hz |
All SFPs support the 2-wire serial communication protocol outlined in the SFP MSA. These SFPs use an MCU, can be accessed with address of A0h.
Recommended Application Circuit

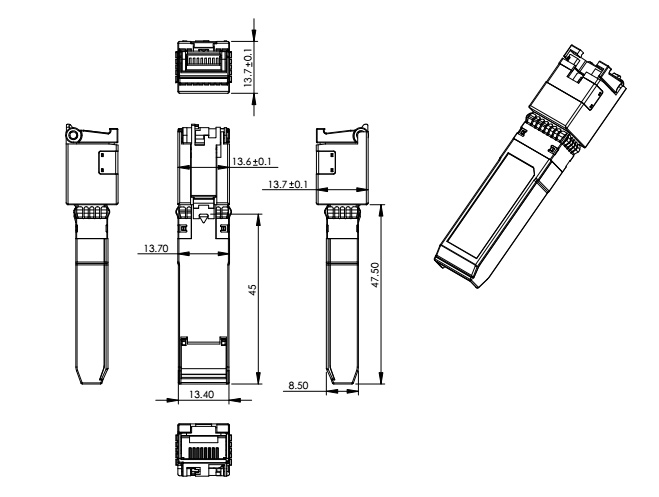

Outline Drawing (mm)
Date | Version | Description | Download | ||
2025-03-17 | Datasheet_10G SFP+ Copper Transceiver_LA-OT-10GT-RJ |
