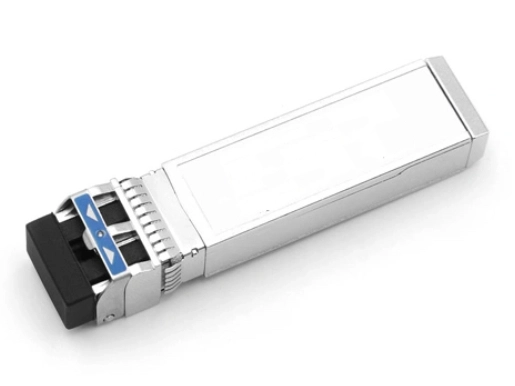

10Gb/s SFP+ CWDM 80km Transceiver

LA-OT-10G-CW46-80
Designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of CWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly.
Overview
Specifications
Connectivity Solutions
Models
Resources

Designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of CWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472. The module data link up to 80km in 9/125um single mode fiber.


Features
● Compliant to SFP+ SFF-8431 and SFF-8432 Hot-pluggable SFP+ footprint
● Supports 9.5 to 11.3Gb/s bit rates
● Power dissipation < 1.5W
● Single 3.3V power supply
● Maximum link length of 80km
● CWDM wavelength EML transmitter, APD photo-detector
● Duplex LC connector
● Power dissipation < 1.5W
● Built-in digital diagnostic functions
● Case temperature range: 0°C to 70°C


Standard
● Compliant with SFF-8472 SFP+ MSA
● Compliant to SFP+ SFF-8431 and SFF-8432
● Compliant to 802.3ae 10GBASE-ZR

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

-40


85

ºC


Storage Ambient Humidity

HA

5


85

%


Power Supply Voltage

VCC

-0.5


4

V


Signal Input Voltage


-0.3


Vcc+0.3

V


Receiver Damage Threshold


+4



dBm



Operation Environment

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Case

Temperature

Tcase

0


70

ºC

Note (1)

Ambient Humidity

HA

5


85

%


Power Supply

Voltage

VCC

3.14

3.3

3.46

V


Power Supply

Current

ICC



450

mA


Power Supply

Noise Rejection




100

mVp-p

100Hz to 1MHz

Transmission Distance




80

km


Coupled fiber

Single mode fiber

ITU-T G.653

Note: -10 to 60degC with 1.5m/s airflow


Optical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter

Average Launched

Power

PO

-2


+5

dBm

Note (1)

Extinction Ratio

ER

6



dB


Center Wavelength

λc

1470


1610

nm


Center Wavelength Space



20


nm


Spectrum Band

Width (RMS)

σ



1.0

nm


SMSR


30



dB


Transmitter OFF

Output Power

POff



-40

dBm


TX Jitter (peak-peak)

Txj



0.1

UI


TX Jitter (RMS)

Txjrms



0.01

UI


Transmitter and

Dispersion Penalty

TDP



3.0

dB


Output Eye Mask

Compliant with IEEE 0802.3ae



Receiver

Input Optical

Wavelength

λ

1270


1610

nm


Receiver Sensitivity




-22

dBm

Note (2)

Input Saturation

Power (Overload)

Psat

-8



dBm


LOS Detect -

Assert Power

PA

-36



dBm


LOS Detect -

Deassert Power

PD



-23

dBm


LOS Detect Hysteresis

PHYS

2



dB



Note:

1. Launched power (avg.) is power coupled into a single mode fiber with connector. (Before of Life)

2. Measured with conformance test signal for BER = 10^–12.@10.3125Gbps, PRBS=2^31-1, NRZ


Electrical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter

Differential line

input Impedance

RIN


100


Ohm


Differential Data

Input Swing

VDT

300


700

mVp-p


Transmit Disable

Voltage

Vdis

2


Vcc

V

LVTTL

Transmit Enable

Voltage

Ven

Vee


Vee+0.8

V

Receiver

Differential Data

Output Swing

VDR

400


850

mVp-p

Note (1)

LOS Output

Voltage-High

VLOSH

Vee


Vee+0.8

V

LVTTL

LOS Output

Voltage-Low

VLOSL

2


VccHOST

V

Note: Into 100Ω differential termination.

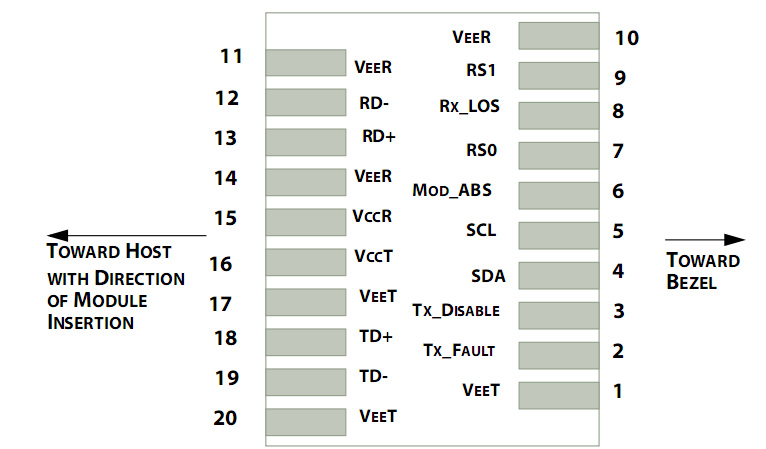

Pin Description

Pin Description of 10Gb/s SFP+ CWDM 80km Transceiver



Pin

Symbol

Name/Description

Note

1

VEET

Transmitter Ground (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault.

2

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

3

4

SDA

2-wire Serial Interface Data Line

4

5

SCL

2-wire Serial Interface Clock Line

4

6

MOD_ABS

Module Absent. Grounded within the module

4

7

RS0

Rate Select 0

5

8

LOS

Loss of Signal indication.  Logic 0 indicates normal operation.

6

9

RS1

No connection required

1

10

VEER

Receiver Ground (Common with Transmitter Ground)

1

11

VEER

Receiver Ground (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out.  AC Coupled


13

RD+

Receiver Non-inverted DATA out.  AC Coupled


14

VEER

Receiver Ground (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply


16

VCCT

Transmitter Power Supply


17

VEET

Transmitter Ground (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.


19

TD-

Transmitter Inverted DATA in.  AC Coupled.


20

VEET

Transmitter Ground (Common with Receiver Ground)

1



Notes:

1. TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates a laser fault of some kind. In the low state, the output will be pulled to less than 0.8V.

2. TX Disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7k~10kΩ resistor. Its states are:

Low (0~0.8V): Transmitter on

(>0.8V, <2.0V): Undefined

High (2.0~3.3V): Transmitter Disabled

Open: Transmitter Disabled

3. MOD-DEF 0,1,2 is the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VccT or VccR.

MOD-DEF 0 is grounded by the module to indicate that the module is present

MOD-DEF 1 is the clock line of two wire serial interface for serial ID

MOD-DEF 2 is the data line of two wire serial interface for serial ID

4. LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates loss of signal. In the low state, the output will be pulled to less than 0.8V.

5. These are the differential receiver output. They are internally AC-coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES.

6. These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module.

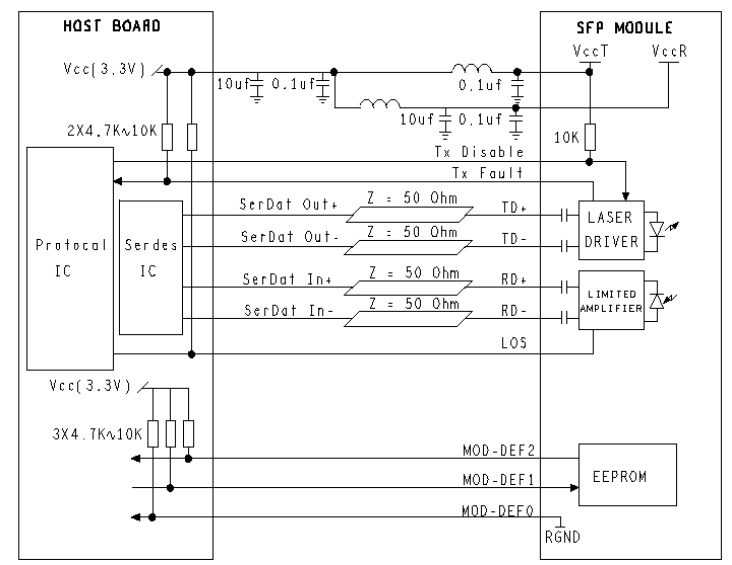

Recommended Application Circuit

Recommended Application Circuit of 10Gb/s SFP+ CWDM 80km Transceiver

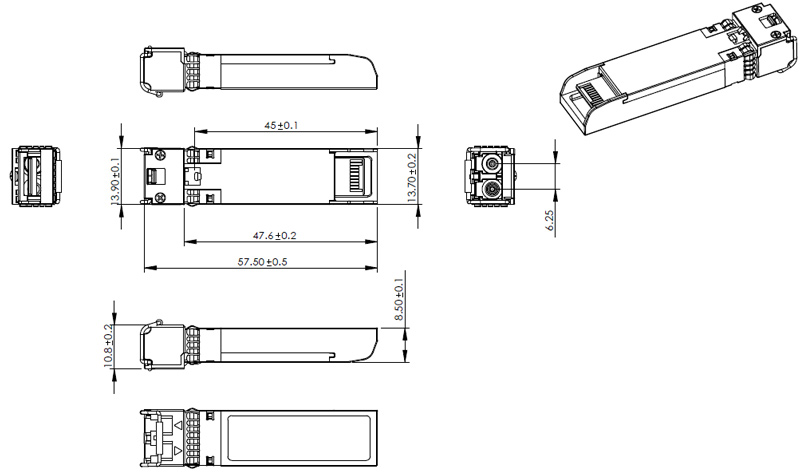

Outline Drawings (mm)

Outline Drawings (mm) of 10Gb/s SFP+ CWDM 80km Transceiver


Regulatory Compliance

Feature

Reference

Performance

Electrostatic disge (ESD)

IEC/EN 61000-4-2

Compatible with standards

Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B (CISPR 22A)

Compatible with standards

Laser Eye Safety

FDA 21CFR 1040.10, 1040.11 IEC/EN 60825-1, 2

Class 1 laser product

Component Recognition

IEC/EN 60950, UL

Compatible with standards

ROHS

2002/95/EC

Compatible with standards

EMC

EN61000-3

Compatible with standards


Application

● 10GBASE-ZR/ZW 10G Ethernet

Date Version Description Download
2025-03-17 Datasheet_10G CWDM SFP+ 1470nm~1610nm 80km_LA-OT-10GCW46-80_V2.Y
