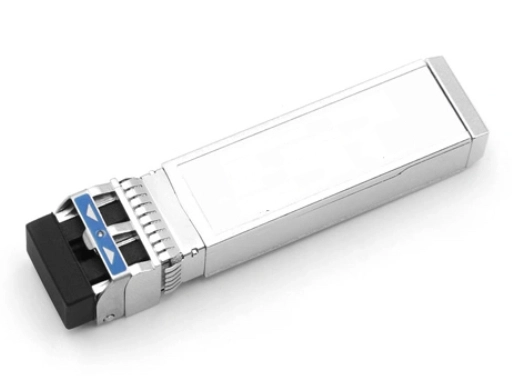

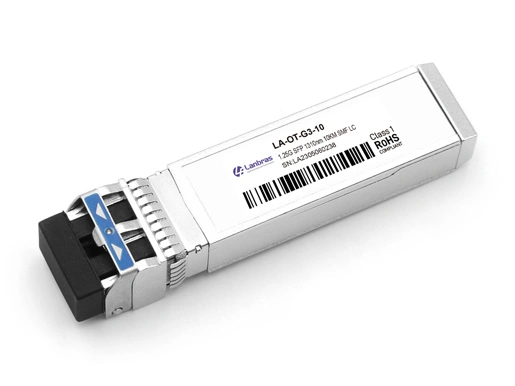

10Gb/s DWDM SFP+ 80km Transceiver

LA-OT-10GD5-80
10G DWDM transceivers include an APD diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are available via an I2C.
Overview
Specifications
Connectivity Solutions
Models
Resources

10G DWDM transceivers include an APD diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.


Features
●  Up to 11.3Gbps Data Links
●  Up to 80km transmission on SMF
●  DWDM EML Laser and APD receiver
●  Metal enclosure, for lower EMI
●  2-wire interface with integrated Digital Diagnostic monitoring
●  Hot-pluggable SFP+ footprint
●  Compliant to SFP+ SFF-8431 and SFF-8432
●  Specifications compliant with SFF 8472
●  Compliant with SFP+ MSA with LC connector
●  Single 3.3V power supply
●  Case operating temperature range:0°C to 70°C
● Power dissipation < 1.5W

Standard
● Compliant to SFF-8431
● RoHS Compliant.

Product Selection

C-band λc Wavelength Guide Pin Descriptions

Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C17

1563.86

191.70

C39

1546.12

193.90

C18

1563.05

191.80

C40

1545.32

194.00

C19

1562.23

191.90

C41

1544.53

194.10

C20

1561.42

192.00

C42

1543.73

194.20

C21

1560.61

192.10

C43

1542.94

194.30

C22

1559.79

192.20

C44

1542.14

194.40

C23

1558.98

192.30

C45

1541.35

194.50

C24

1558.17

192.40

C46

1540.56

194.60

C25

1557.36

192.50

C47

1539.77

194.70

C26

1556.55

192.60

C48

1538.98

194.80

C27

1555.75

192.70

C49

1538.19

194.90

C28

1554.94

192.80

C50

1537.40

195.00

C29

1554.13

192.90

C51

1536.61

195.10

C30

1553.33

193.00

C52

1535.82

195.20

C31

1552.52

193.10

C53

1535.04

195.30

C32

1551.72

193.20

C54

1534.25

195.40

C33

1550.92

193.30

C55

1533.47

195.50

C34

1550.12

193.40

C56

1532.68

195.60

C35

1549.32

193.50

C57

1531.90

195.70

C36

1548.51

193.60

C58

1531.12

195.80

C37

1547.72

193.70

C59

1530.33

195.90

C38

1546.92

193.80

C60

1529.55

196.00

Non-ITU

Peak wavelength between 1528.77nm-1563.86

C61

1528.77

196.10


Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

-40

-

85

ºC


Relative Humidity

RH

5

-

95

%


Power Supply Voltage

VCC

-0.3

-

4

V


Signal Input Voltage


Vcc-0.3

-

Vcc+0.3

V



Recommended Operating Conditions

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Case Operating

Temperature

Tcase

0

-

70

ºC

Without air flow

Power Supply Voltage

VCC

3.14

3.3

3.47

V


Power Supply Current

ICC

-


450

mA


Data Rate

BR


10.3125

11.3

Gbps


Transmission Distance

TD


-

80

km


Coupled fiber

Single mode fiber

9/125um SMF


Optical Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

NOTE

Transmitter

Average Optical Power

Pout

0


5

dBm

1

Optical Wavelength

λc

λc-0.1


λc+0.1

nm


Center Wavelength Spacing



100


GHz

2

Optical Extinction Ratio

ER

6.0



dB


Transmitter and

Dispersion Penalty

TDP



3.0

dB


Side mode

Suppression ratio

SMSR

30



dB


Average Launch Power

Poff



-30

dBm


Output Eye Mask

Compliant with IEEE 802.3ae


Receiver

Rx Sensitivity

RSENS



-23

dBm

3

Input Saturation

Power (Overload)

Psat

-6



dBm


Wavelength Range

λC

1480


1580

nm


LOS De-Assert

LOSD



-26

dBm


LOS Assert

LOSA

-35



dBm


LOS Hysteresis


0.5



dB



Notes:

1. Output power is power coupled into a 9/125 mm single-mode fiber.

2. Corresponds to approximately 0.8 nm.

3. Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12.


Electrical Characteristics

Parameter

Symbol

Min

Type

Max

Unit

Note

Supply Voltage

Vcc

3.14

3.3

3.46

V


Supply Current

Icc



450

mA


Transmitter

Input differential

impedance

ohm


100


Ω

1

Differential data

 input swing

Vin,pp

120


820

mV


Transmit Disable

Voltage

VD

Vcc–1.3


Vcc

V


Transmit Enable

Voltage

VEN

Vee


Vee+ 0.8

V

2

TX_FAULT Voltage-High


Vcc–1.3


Vcc

V


TX_FAULT Voltage-Low


Vee


Vee+ 0.8

V


Transmit Disable Assert Time




10

us


Receiver

Differential data output swing

Vout,pp

350


850

mV

3

Data output rise time

tr

30



ps

4

Data output fall time

tf

30



ps

4

LOS De-assert


Vcc–1.3


VccHOST

V

5

LOS Assert


Vee


Vee+0.8

V

5


Notes:

1. Connected directly to TX data input pins. AC coupled thereafter.

2. Or open circuit.

3. Into 100 ohms differential termination.

4. These are unfiltered 20-80% values

5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

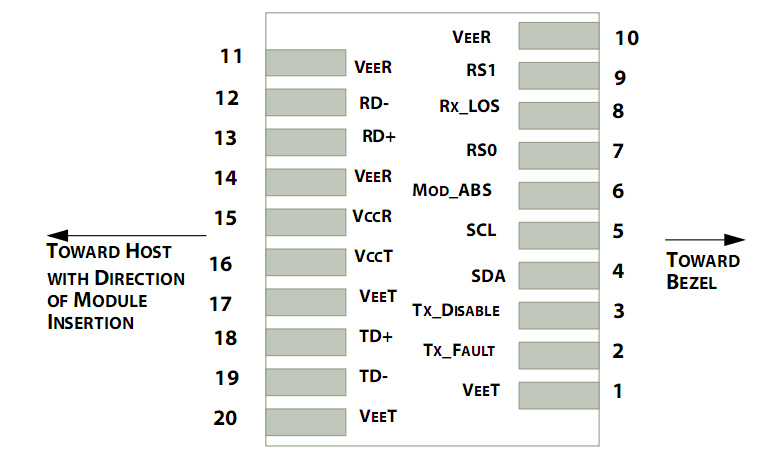

Pin Descriptions

Pin Descriptions of 10Gb/s DWDM SFP+ 80km Transceiver


Pin out of Connector Block on Host Board

Pin

Symbol

Name/Description

NOTE

1

VEET

Transmitter Ground (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault.

2

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

3

4

SDA

2-wire Serial Interface Data Line

4

5

SCL

2-wire Serial Interface Clock Line

4

6

MOD_ABS

Module Absent. Grounded within the module

4

7

RS0

Rate Select 0

5

8

LOS

Loss of Signal indication.  Logic 0 indicates normal operation.

6

9

RS1

No connection required

1

10

VEER

Receiver Ground (Common with Transmitter Ground)

1

11

VEER

Receiver Ground (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out.  AC Coupled


13

RD+

Receiver Non-inverted DATA out.  AC Coupled


14

VEER

Receiver Ground (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply


16

VCCT

Transmitter Power Supply


17

VEET

Transmitter Ground (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.


19

TD-

Transmitter Inverted DATA in.  AC Coupled.


20

VEET

Transmitter Ground (Common with Receiver Ground)

1


Notes:

1. Circuit ground is internally isolated from chassis ground.

2. TFAULT is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohm’s resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.

3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

4. Should be pulled up with 4.7kΩ- 10kΩ host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

5. Internally pulled down per SFF-8431 Rev 4.1.

6. LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.


Digital Diagnostic Functions

10G DWDM transceivers support the 2-wire serial communication protocol as defined in the SFP+ MSA.


The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard interfaces, manufacturer, and other information.


Additionally, SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which s end-users when particular operating parameters are outside of a factory set normal range.


The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8-bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8-bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.


The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL, Mod Def 1) is generated by the host. The positive edge clocks data into the SFP transceiver into those segments of the E2PROM that are not write-protected. The negative edge clocks data from the SFP transceiver.  The serial data signal (SDA, Mod Def 2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially.

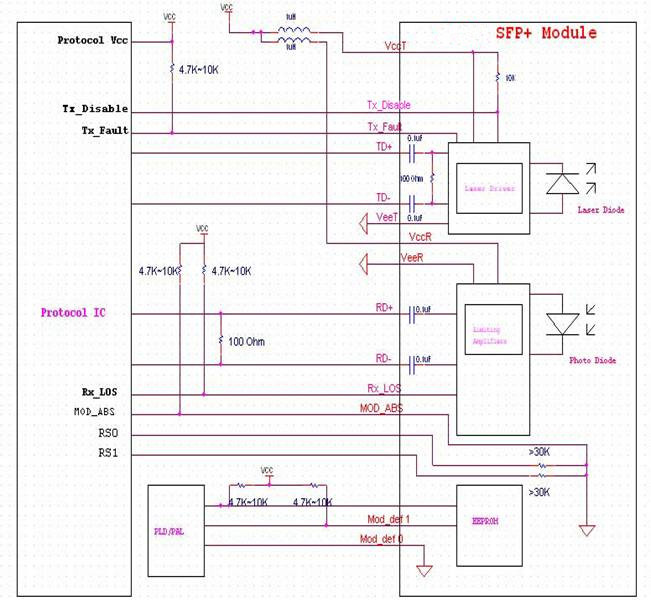

Host - Transceiver Interface Block Diagram

Host - Transceiver Interface Block Diagram of 10Gb/s DWDM SFP+ 80km Transceiver

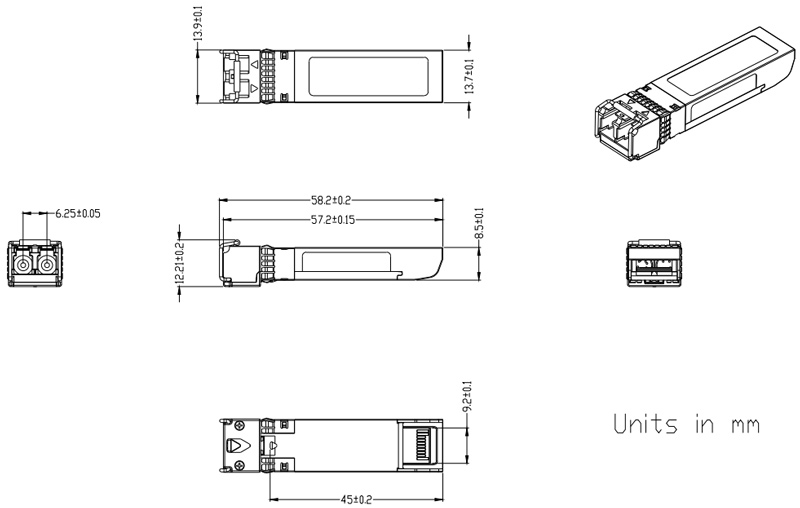

Outline Drawing (mm)

Outline Drawing (mm) of 10Gb/s DWDM SFP+ 80km Transceiver


Regulatory Compliance

Feature

Reference

Performance

Electrostatic disge(ESD)

IEC/EN 61000-4-2

Compatible with standards

Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B (CISPR 22A)

Compatible with standards

Laser Eye Safety

FDA 21CFR 1040.10, 1040.11 IEC/EN 60825-1, 2

Class 1 laser product

Component Recognition

IEC/EN 60950, UL

Compatible with standards

ROHS

2002/95/EC

Compatible with standards

EMC

EN61000-3

Compatible with standards



Application

● 10G Ethernet

● 10G SONET/SDH, OTU2/2e and 10G FC

Date Version Description Download
2025-03-17 Datasheet_10G DWDM SFP+ 80km_LA-OT-10GD5-80_V2.G
