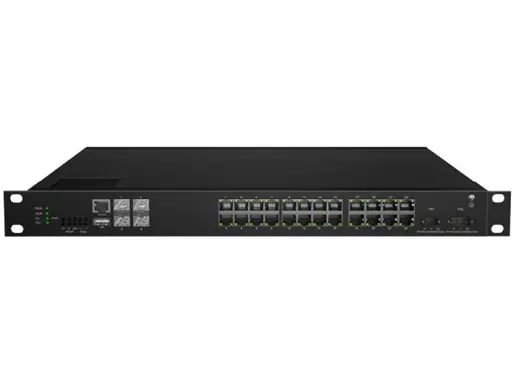

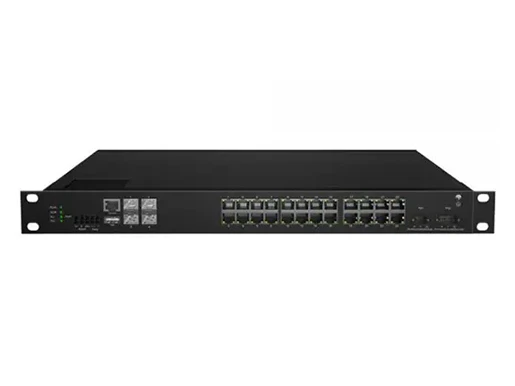

10G Base-X, 24x10/100/1000 Base-T PoE Managed Industrial Switch

LA-IS8M-10G0424P-USB
LA-IS8M-10G0424P-USB is an innovative Management Industrial Ethernet PoE Switch, support 24 x 10/100/1000 Base-T RJ45 port (24xPoE), and 4 x 10GBase-X SFP+ optical fiber port.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-IS8M-10G0424P-USB is an innovative Management Industrial Ethernet PoE Switch, support 24 x 10/100/1000 Base-T RJ45 port (24xPoE), and 4 x 10GBase-X SFP+ optical fiber port, providing excellent industrial quality such as high/low temperature resistance, lightning protection, etc., through the design of fanless cooling circuit, wide range working environment temperature, high protection grade and other technologies. Besides, various rich protocols, such as integrated switching and security, support public Ethernet multi-ring protection technology (ERPS), greatly improve network flexibility and enhance the reliability and security of industrial networks. It is customized with USB for easy upgrading and bring-up.


The switch uses high performance Marvell mainchip 98DX226S, PHY 88E1685, and PSE chip RTL8238B-VB-GR. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

PART NOLA-IS8M-10G0424P-USB
Provider Mode Ports
Fixed Port4 x 10G Base-X, 24 x 10/100/1000 Base-T
Management PortSupport console
Power InterfacePhoenix terminal, dual power supply redundancy
LED IndicatorsPWR, Link/ACT  LED
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e, CAT6)
Monomode Optical Fiber20/40/60/80/100KM
Multimode Optical Fiber550m
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageDC36-75V/AC 100-240V 50-60HZ
Total Power ConsumptionNon PoE <36W, with PoE<400W
PoE Support
PoE Port1-24
PoE Protocol802.3af, 802.3at
Pin Assignment1,2,3,6
PoE ManagementSupport
Layer 2 Switching
Switching Capacity160G
Packet Forwarding Rate95.23Mpps
MAC Address Table16K
VLANSupport 4K
Buffer12M
Forwarding Delay<10us
MDX/MIDXSupport
Flow ControlSupport
Jumbo Frame10Kbytes
Spanning TreeSupport STP/RSTP/MSTP
Ring ProtocolSupport ERPS
Link AggregationSupport 12 group
MulticastSupport IGMP Snooping
Port MirroringSupport
Storm ControlSupport
Interface CountersSupport
QINQSupport
802.1XSupport
Radius/Mac AuthenticationSupport
Layer 3 Route
Static RouteSupport 256 static route
Convergence
ACLSupport ACL 500
Support IP standard ACL
Support MAC expand ACL
Support IP expand ACL
QOSSupport QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoS
Management
CLISupport
ConsoleSupport
TelnetSupport
WEB ManagementSupport
SNMPSupport SNMPv1/v2c/v3
User ManagementSupport
System LogSupport
Configuration File Download/UploadSupport
Upgrade FirmwareSupport
Environment
Operating Temperature-40℃~+75℃
Storage Temperature-40℃~+75℃
Relative Humidity5%~95% (non-condensing)
Thermal MethodsFanless, natural cooling
MTBF100,000 hours

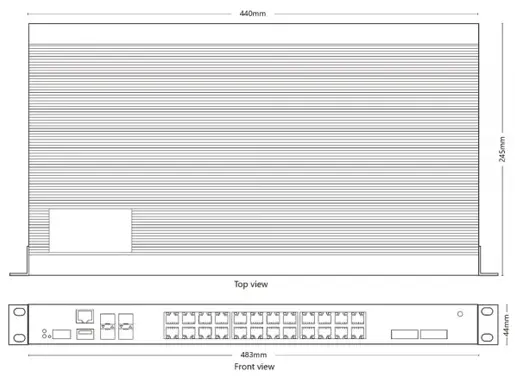

Mechanical Dimensions
Product Size440*245*44mm (W×H×D)
Installation MethodRack mounted
Weight3.6KG around
EMC & Ingress Protection
IP LevelIP40
Surge Protection of PowerIEC 61000-4-5  Level 3 (4KV/2KV)(8/20us)
Surge Protection of Ethernet PortIEC 61000-4-5  Level 3 (4KV/2KV)(10/700us)
RSIEC 61000-4-3  Level 3 (10V/m)
EFIIEC 61000-4-4  Level 3 (1V/2V)
CSIEC 61000-4-6  Level 3 (10V/m)
PFMFIEC 61000-4-8  Level4 (30A/m)
DIPIEC 61000-4-11  Level3 (10V)
EMICLASS A
ESDIEC 61000-4-2  Level 4 (8K/15K)
Free Fall0.5m
Warranty
Warranty3 years
Authentication
AuthenticationCE/FCC/RoHS


  • Input Voltage: DC 36~75V/AC 100~240V 50/60Hz

  • Operating Temperature: -40℃ ~ +75℃

  • Shell: IP40 protection, fanless design

  • Test Report: RoHS, FC, CE

  • Anti-static: 8KV-15KV

  • MTBF: 100000 Hours

Ordering Information
LA-IS8M-10G0424P-USB4x10G Base-X, 24x10/100/1000 Base-T PoE Managed Industrial Switch Support USB, Dual Power Input DC 36~75V/AC 100~240V 50/60Hz
LA-IS8M-10G0424-USB4x10G Base-X, 24x10/100/1000 Base-T Managed Industrial Switch Support USB, 400W PoE Budget, Dual Power Input DC 36~75V/AC 100~240V 50/60Hz
