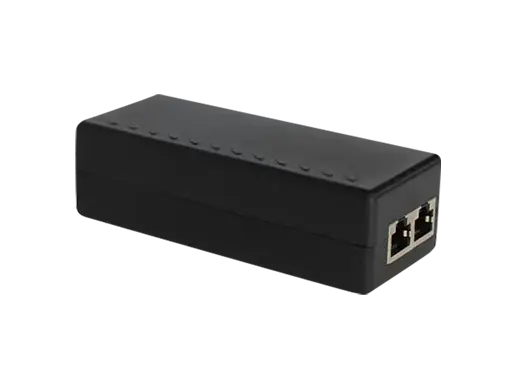

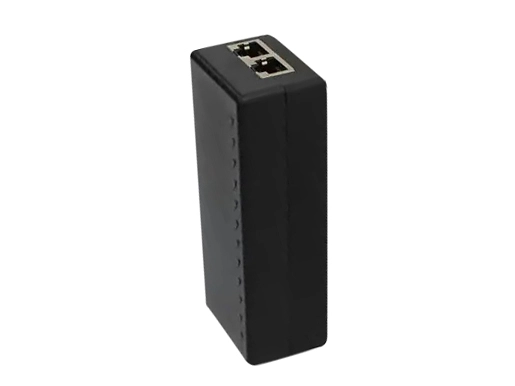

LA-PSE-30T2.5G-Y is a single port PoE Injector, converts standard 100~240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories, remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. The PoE Mid-spans no need to connect with external power supply and its associated AC/DC power cabling, providing a compact, afforadble, safe and reliable power solution over existing Ethernet infrastructure.
Features
● Up to 30watts of Power on 2-pairs
● Supports 10/100/1000/2.5G Base-T applications
● LED indicators power input and PoE output
● Internal AC/DC converter no need for external power brick
● Easy plug-and-play installation
● Over current, over load, over voltage and anti-interference protection
● Case belt installation hole
Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Fast Ethernet IEEE 802.3ab 1000Base-Tx Gbit/s Ethernet IEEE 802.3bz 2500Base-Tx Gbit/s Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
Connector | 10/100/1000Mbps/2.5G, Shielded RJ45 |
Indicators | AC Power (Red); PoE (Green) |
Pin Assignment and Polarity | 1/2(+), 3/6 (-) |
Output Power Voltage | DC48V-57V (Default DC54V) |
Power | Max. 30Watts |
Input Power | AC100~240V, 0.5A, 50/60 Hz |
Operating Temperature | 0~45°C |
Storage Humidity | Maximum 95%, non-condensing |
Dimensions (L x W x H) | 121mm x 50mm x 36mm |
Net Weight | 0.2kg |

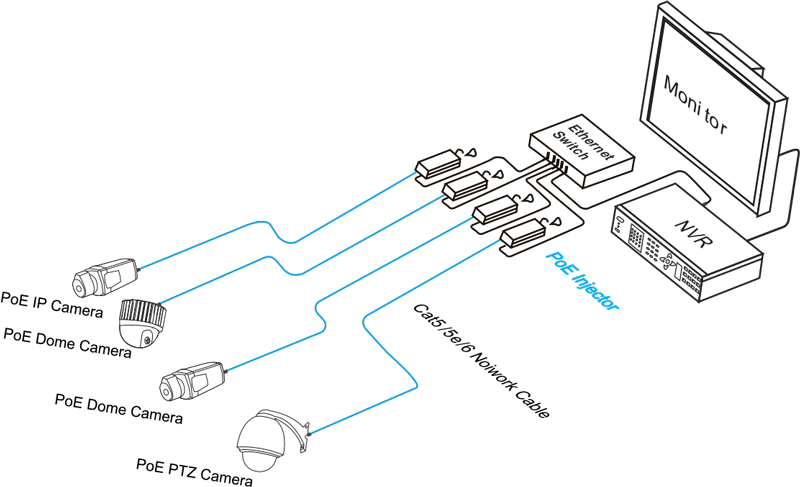

Use PoE Injector with PD to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

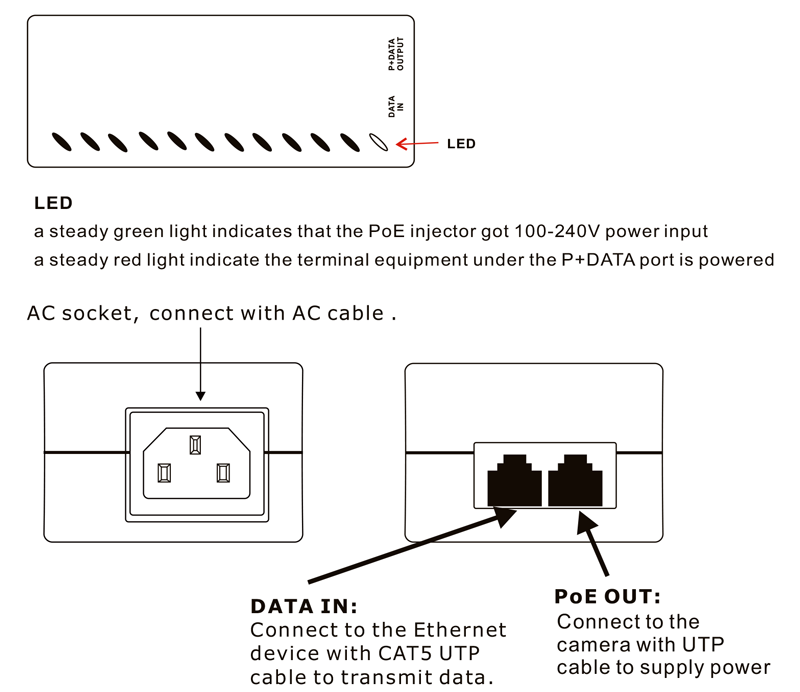

Steps
1. Use a CAT5 UTP cable to connect port of Ethernet device to the DATA IN port
2. Connect AC cable with Injector and Socket
3. Connect the PoE OUT port to a PD with CAT5 UTP cable
Note: It is recommended to use CAT5E/CAT6 or better Ethernet cables for 2.5 Gigabit networks, as the quality of the cables can affect transmission speed and quality
Ordering Information | |
---|---|
LA-PSE-30T2.5G-Y | 2.5G PoE injector IEEE802.3af/at PoE+ 30w |
Date | Version | Description | Download | ||
2025-03-14 | Datasheet_2.5G PoE Injector 30Watts_LA-PSE-30T2.5G-Y V3.0 KTY |
