LA-PSE-30T2.5G-D is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30Watts, it supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backwards to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T/2.5G devices such as Wi-MAX and wireless IEEE 802.11n access points. User can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Features
● Up to 30w of PoE Power
● IEEE 802.3at Compliant
● Compatible with IEEE 802.3af or Legacy PoE applications
● Safe on Low Power Devices Receive Only the Power They Need
● Safe and Reliable Power to WLAN Access Points
● Automatic Detection and Protection of Non–standard Ethernet Terminals
● Support 10/100/1000/2.5GBase-T LAN Environment
● Unique side interlocking feature for Multi PoE Injector installation
Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Fast Ethernet IEEE 802.3ab 1000Base-Tx Gbit/s Ethernet IEEE 802.3bz 2500Base-Tx Gbit/s Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
Connector | 10/100/1000Mbps/2.5G, Shielded RJ45 |

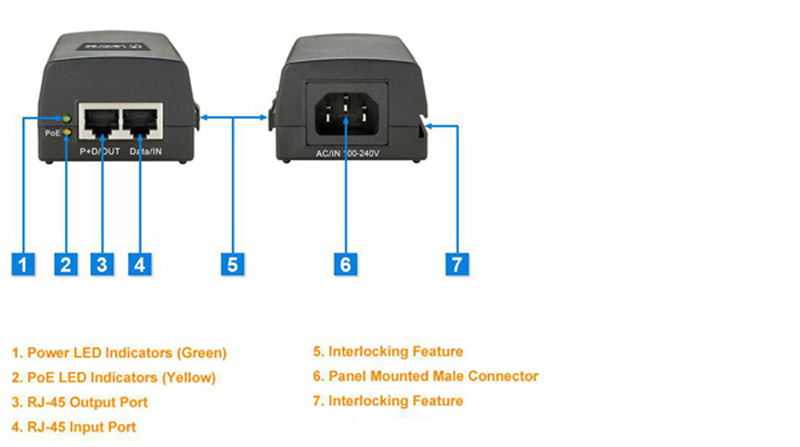

Indicators | AC Power (Green); PoE (Yellow) |
Pin Assignment and Polarity | 1/2(+), 3/6 (-) |
Output Power Voltage | DC48V-57V (Default DC54V) |
Power | Max. 30Watts |
Input Power | AC100~240V, 0.8A, 50/60 Hz |
Operating Temperature | 0~45°C |
Storage Humidity | Maximum 95%, non-condensing |
Dimensions (L x W x H) | 144mm x 57mm x 40mm |
Net Weight | 0.35KG |

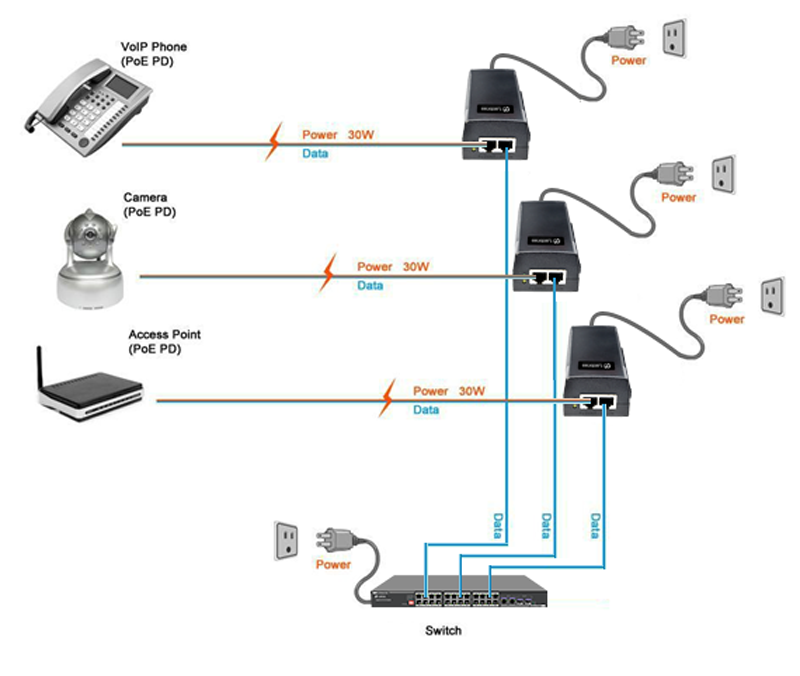

Steps
1. Use a CAT5 UTP cable to connect port of Ethernet device to the DATA IN port
2. Connect AC cable with Injector and Socket
3. Connect the PoE OUT port to a PD with CAT5 UTP cable
Note: It is recommended to use CAT5E/CAT6 or better Ethernet cables for 2.5 Gigabit networks, as the quality of the cables can affect transmission speed and quality
Ordering Information | |
---|---|
LA-PSE-30T2.5G-D | 2.5G PoE injector IEEE802.3af/at PoE+ 30w |
